GSMCentrum.CZ » Power supplies » Modular power supplies » for an open installation

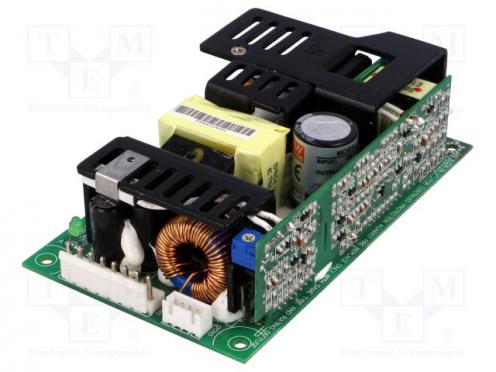

Power supply switched-mode 160W 127÷370VDC 90÷264VAC OUT 1
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMERPS-160-48 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | MEAN WELL |
Popis produktu
Power supply switched-mode 160W 127÷370VDC 90÷264VAC OUT 1 - Popis produktu
| Manufacturer | MEAN WELL |
|---|---|
| Type of power supply | switched-mode |
| Power | 160W |
| Supply voltage | 90...264V AC |
| Supply voltage | 127...370V DC |
| Number of outputs | 1 |
| Output current | 3.25A |
| Power supply/converter features | no load power consumption <0,3W |
| Power supply/converter features | rated parameters obtained at full load |
| Power supply/converter features | the maximum current only with additional cooling |
| Kind of power supply | open |
| Operating temperature | -20...70°C |
| Mounting | for building in |
| Efficiency | 88% |
| Protection | overheating |
| Protection | overload |
| Protection | short-circuit |
| Protection | voltage growth |
| Body dimensions | 127x76.2x34.6mm |
| Weight | 320g |
| Electrical connection | plug with 3,96mm pitch |
| Series | RPS-160 |
| Application | medical applications |
| Additional functions | active PFC |
| Output voltage | 43.2...52.8V DC |
| Output voltage | 48V DC |
