GSMCentrum.CZ » Automation technology » Regulation and control » Data logger

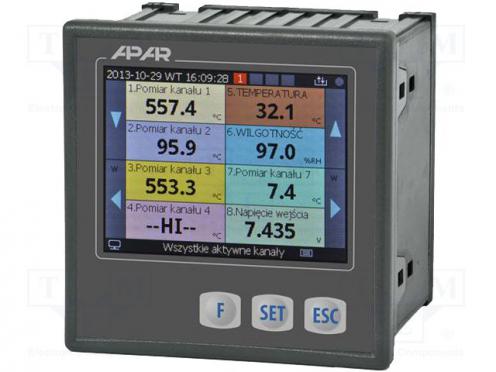

Logger 85÷260VAC Inputs 8 Mounting on panel 0÷50°C
| Items in stock i | 1 pieces |
|---|---|
| Barcode: | |
| Number: | TMEAR207/8/S1PPPP65 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | APAR |
Popis produktu
Logger 85÷260VAC Inputs 8 Mounting on panel 0÷50°C - Popis produktu
| Type of module | logger |
|---|---|
| Kind of temperature sensor | Ni100 |
| Kind of temperature sensor | Pt100 |
| Kind of temperature sensor | Pt1000 |
| Kind of temperature sensor | Pt500 |
| Kind of temperature sensor | thermocouple B |
| Kind of temperature sensor | thermocouple E |
| Kind of temperature sensor | thermocouple J |
| Kind of temperature sensor | thermocouple K |
| Kind of temperature sensor | thermocouple N |
| Kind of temperature sensor | thermocouple R |
| Kind of temperature sensor | thermocouple S |
| Kind of temperature sensor | thermocouple T |
| Supply voltage | 85...260V AC |
| Number of inputs | 8 |
| Mounting | on panel |
| Operating temperature | 0...50°C |
| IP rating | IP65 (from the front) |
| The programming method | PC |
| The programming method | USB |
| The programming method | keypad |
| Additional functions | MODBUS RTU |
| Additional functions | 4GB of data memory |
| Additional functions | transducers power supply 24V DC |
| Kind of display used | LCD TFT 3,5" (320x240) |
| Kind of display used | color |
| Kind of display used | with a backlit |
| Body dimensions | 96 x 96 x 79mm |
| Communication with PC | RJ45 Ethernet |
| Communication with PC | RS485 |
| Communication with PC | USB |
| Mounting hole diameter | 92 x 89mm |
| Kind of output 1 | SPST-NO |
| Kit contents | manual |
| Kit contents | ARSoft-WZ1 software for data logger configuration |
| Kit contents | ARSoft-WZ3 software for data logger configuration |
| Kit contents | ARSoft-WZ4 software for data logger configuration |
| Kit contents | USB cable 2m long |
| Kit contents | CD with drivers and software |
| Kit contents | recorder |
| Kind of output 2 | SPST-NO |
| Kind of output 3 | SPST-NO |
| Kind of output 4 | SPST-NO |
| Driver features | rear panel USB |
| Kind of input 1 | universal |
| Manufacturer | APAR |
