| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TME321896 |
| Package: | |
| Min. quantity: | 1000 |
| Manufacturer: | TE CONNECTIVITY |

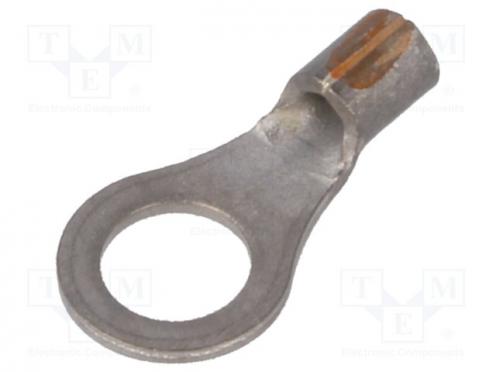

Ring terminal M4,5 0.3÷1.42mm2 crimped for cable nickel 5mm - Popis produktu
| Manufacturer | TE Connectivity |
|---|---|
| Type of tip | ring terminal |
| Hole for screw | M4,5 |
| Electrical mounting | crimped |
| Mechanical mounting | for cable |
| Ferrule variant | non-insulated |
| Contact material | nickel |
| Ring inside diameter | 5mm |
| Wire size | 22AWG - 16AWG |
| Max operating temperature | 649°C |
| Wire cross section | 0.3...1.42mm2 |
