GSMCentrum.CZ » Electronic components » Fans » DC Fans

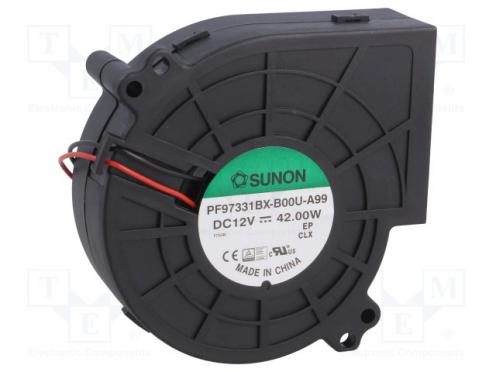

Fan DC blower 12VDC 97x95x33mm 92.93m3/h 63.2dBA 6800rpm

Availability Only per order
Barcode:
Number: TMEPF97331BX-B00U-A99
Package:
Min. quantity: 1
Manufacturer: SUNON


£18.65 price without VAT

Select the transport (Price incl. transport)

Quantity pricing

Quantity 10+ ks 48+ ks More
Unit Price £16.88 £15.21 ask for a price

Quantity

Min. quantity: 1


Shipping Cost

Popis produktu

Fan DC blower 12VDC 97x95x33mm 92.93m3/h 63.2dBA 6800rpm - Popis produktu

Type of fanDC
Kind of fanblower
Supply voltage12V DC
Operating voltage6...12.6V
Fan dimensions97x95x33mm
Power consumption42W
Current rating3500mA
Fans efficiency92.93m3/h
Noise level63.2dBA
Kind of Bearingball bearing
Rotational rate/speed6800rpm
Weight184g
Current and power consumption tolerance±15%
Min. insulation resistance10MΩ
Impeller materialthermoplastic
Enclosure materialthermoplastic
Insulation classA
Leads2 leads
Operating temperature-10...70°C
Static pressure132.52mm H2O
Cable length300mm
Fan motorbrushless DC motor
Flammability ratingUL94V-0
Wire size24AWG
Additional functionsAutorestart
ManufacturerSUNON
