| Items in stock i | 211 pieces |
|---|---|
| Barcode: | |
| Number: | TMEMF60251VX-A99-A |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | SUNON |

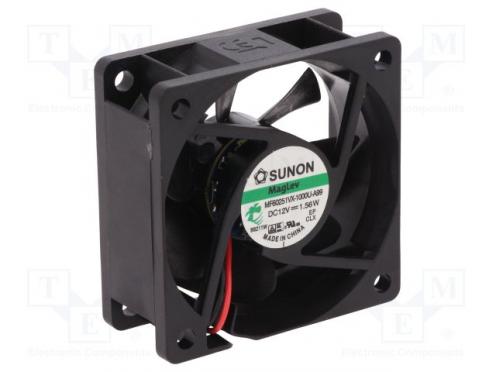

Fan DC axial 12VDC 60x60x25mm 45.63m3/h 31.2dBA Vapo 5200rpm - Popis produktu
| Type of fan | DC |
|---|---|
| Kind of fan | axial |
| Supply voltage | 12V DC |
| Operating voltage | 4.5...13.8V |
| Fan dimensions | 60x60x25mm |
| Power consumption | 1.56W |
| Current rating | 0.13A |
| Fans efficiency | 45.63m3/h |
| Noise level | 31.2dBA |
| Kind of Bearing | Vapo |
| Rotational rate/speed | 5200rpm |
| Weight | 45g |
| Current and power consumption tolerance | ±15% |
| Min. insulation resistance | 10MΩ |
| Impeller material | thermoplastic |
| Enclosure material | thermoplastic |
| Insulation class | A |
| Leads | 2 leads |
| Operating temperature | -10...70°C |
| Static pressure | 7.87mm H2O |
| Cable length | 290mm |
| Fan motor | brushless DC motor |
| Flammability rating | UL94V-0 |
| Wire size | 26AWG |
| Additional functions | Autorestart |
| Manufacturer | SUNON |
