| Items in stock i | 255 pieces |
|---|---|
| Barcode: | |
| Number: | TMEEE60201B1-G99 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | SUNON |

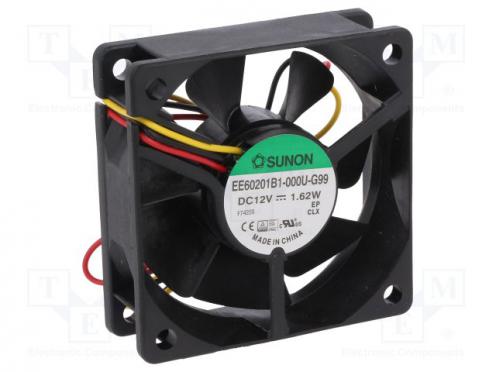

Fan DC axial 12VDC 60x60x20mm 39.08m3/h 34.5dBA ball bearing - Popis produktu
| Type of fan | DC |
|---|---|
| Kind of fan | axial |
| Supply voltage | 12V DC |
| Operating voltage | 4.5...13.8V |
| Fan dimensions | 60x60x20mm |
| Power consumption | 1.62W |
| Current rating | 0.135A |
| Fans efficiency | 39.08m3/h |
| Noise level | 34.5dBA |
| Kind of Bearing | ball bearing |
| Rotational rate/speed | 4500 (±15%)rpm |
| Weight | 52g |
| Current and power consumption tolerance | ±15% |
| Min. insulation resistance | 10MΩ |
| Impeller material | thermoplastic |
| Enclosure material | thermoplastic |
| Insulation class | A |
| Leads | 3 leads |
| Operating temperature | -10...70°C |
| Static pressure | 4.57mm H2O |
| Cable length | 300mm |
| Fan motor | brushless DC motor |
| Flammability rating | UL94V-0 |
| Additional functions | Autorestart |
| Manufacturer | SUNON |
