GSMCentrum.CZ » Electronic components » Transformers » Transformers with mounts
| Items in stock i | 2 pieces |
|---|---|
| Barcode: | |
| Number: | TMETSZZM45/2X9V |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | INDEL |

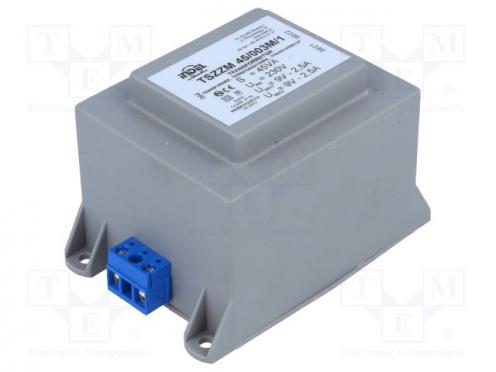

Transformer encapsulated 45VA 230VAC 9V 9V 2.5A screw type - Popis produktu
| Manufacturer | INDEL |
|---|---|
| Type of transformer | encapsulated |
| Power | 45VA |
| Primary voltage | 230V AC |
| Secondary voltage 1 | 9V |
| Secondary voltage 2 | 9V |
| Secondary winding current 1 | 2.5A |
| Leads | terminal block |
| Mounting | screw type |
| Weight | 900g |
| IP rating | IP00 |
| Thermal class | Ta40B |
| Conform to the norm | PN-EN 61558 |
| Insulation class | II |
| A dimension | 70mm |
| A1 dimension | 47.2mm |
| B dimension | 61.2mm |
| B1 dimension | 41.2mm |
| C dimension | 56.5mm |
| C1 dimension | 46.8mm |
| D dimension | 77.5mm |
| D1 dimension | 47.5mm |
| E dimension | 88mm |
| Electrical insulation strength | 4kV/60s |
| Diameter | 4.2mm |
