| Items in stock i | 5 pieces |
|---|---|
| Barcode: | |
| Number: | TMETSZZ15/2X6V |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | INDEL |

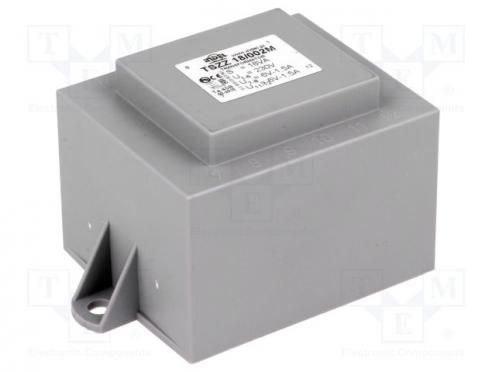

Transformer encapsulated 18VA 230VAC 6V 6V 1.5A 1.5A PCB - Popis produktu
| Manufacturer | INDEL |
|---|---|
| Type of transformer | encapsulated |
| Power | 18VA |
| Primary voltage | 230V AC |
| Secondary voltage 1 | 6V |
| Secondary voltage 2 | 6V |
| Secondary winding current 1 | 1.5A |
| Secondary winding current 2 | 1.5A |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN-EN 61558 |
| Thermal class | Ta40B |
| Secondary winding terminals | 7-8, 11-12 |
| Primary winding terminals | 1-6 |
| Insulation class | II |
| Weight | 550g |
| A dimension | 52mm |
| A1 dimension | 35.6mm |
| B dimension | 44mm |
| B1 dimension | 34.6mm |
| C dimension | 41.5mm |
| C1 dimension | 35mm |
| M dimension | 27.5mm |
| P dimension | 5mm |
| Electrical insulation strength | 4kV/60s |
