| Items in stock i | 2 pieces |
|---|---|
| Barcode: | |
| Number: | TMETSPZ18/2X24V |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | INDEL |

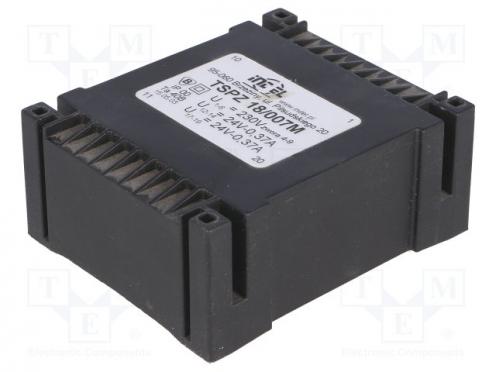

Transformer encapsulated 18VA 230VAC 24V 24V 0.37A 0.37A PCB - Popis produktu
| Manufacturer | INDEL |
|---|---|
| Type of transformer | encapsulated |
| Power | 18VA |
| Primary voltage | 230V AC |
| Secondary voltage 1 | 24V |
| Secondary voltage 2 | 24V |
| Secondary winding current 1 | 0.37A |
| Secondary winding current 2 | 0.37A |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN-EN 61558 |
| Thermal class | Ta40B |
| Insulation class | II |
| Weight | 400g |
| A dimension | 57.2mm |
| A1 dimension | 50mm |
| B dimension | 68mm |
| B1 dimension | 62.5mm |
| C dimension | 27.1mm |
| P dimension | 5mm |
| Electrical insulation strength | 4kV/60s |
| m dimension | 45mm |
