GSMCentrum.CZ » Electronic components » Mechanical switching elements » Vandal-resistant switch
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMELAS1GQF-11DTLY/12V |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | ONPOW |

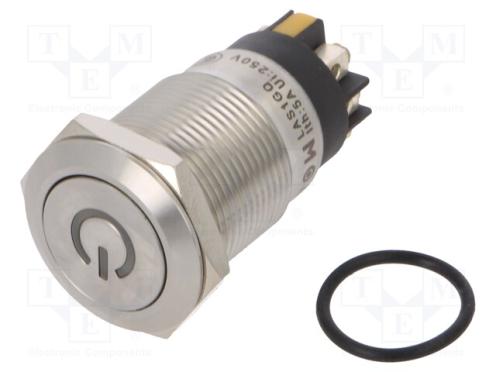

Switch vandal resistant Pos 2 SPDT 3A/220VAC 5A/24VDC IP65 - Popis produktu
| Manufacturer | ONPOW |
|---|---|
| Type of switch | vandal resistant |
| Number of positions | 2 |
| Contacts configuration | SPDT |
| AC contacts rating @R | 3A / 220V AC |
| DC contacts rating @R | 5A / 24V DC |
| IP rating | IP65 |
| Switching method | ON-(ON) |
| Illumination | LED |
| Illumination | point |
| Backlight colour | yellow |
| Illumination voltage | 12V |
| Leads | screw terminals |
| Operating temperature | -25...55°C |
| Electrical life | 50000 cycles |
| Max. contact resistance: | 50mΩ |
| Operating Force | 4N |
| Mechanical durability | 1000000 cycles |
| Button shape | flat |
| Mounting hole diameter | Ø19mm |
| Body colour | silver |
| Body material | stainless steel |
| Ring shape | rounded |
| Test voltage | 2kV |
| Contact material | silver alloy |
| Actuator colour | silver |
| Button marking | POWER |
| Min. insulation resistance | 1000MΩ |
| Manufacturer series | LAS1GQ |
| Stable positions number | 1 |
