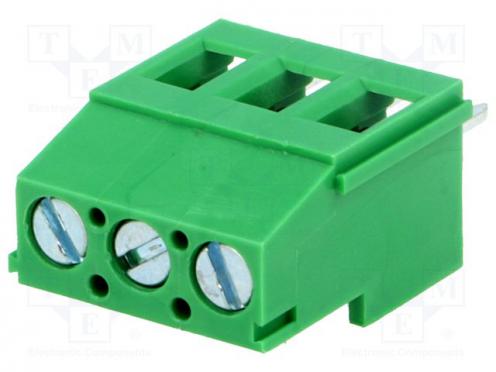

PCB terminal block angled 90° 5.08mm ways 3 on PCBs 2.5mm2
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEEB147A-03-D |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | ADAM TECH |
Popis produktu
PCB terminal block angled 90° 5.08mm ways 3 on PCBs 2.5mm2 - Popis produktu
| Manufacturer | ADAM TECH |
|---|---|
| Type of connector | PCB terminal block |
| Spatial orientation | angled 90° |
| Contacts pitch | 5.08mm |
| Number of ways | 3 |
| Mechanical mounting | on PCBs |
| Electrical mounting | cage clamp |
| Electrical mounting | screw terminal |
| Electrical mounting | THT |
| Connector | terminal |
| Contact plating | tinned |
| Current rating | 16A |
| Height | 18mm |
| Colour | green |
| Rated voltage | 300V |
| Body material | thermoplastic |
| Connectors features | assembling possibility |
| Length | 15.24mm |
| Contact material | brass |
| Operating temperature | -40...105°C |
| Depth | 10.5mm |
| Flammability rating | UL94V-0 |
| Type of pin configuration | 1x3 |
| Conform to the norm | UL |
| Wire cross section | 2.5mm2 |
| Wire size | 26AWG...12AWG |
