GSMCentrum.CZ » Cables and Connectors » Power and extension » Terminal blocks

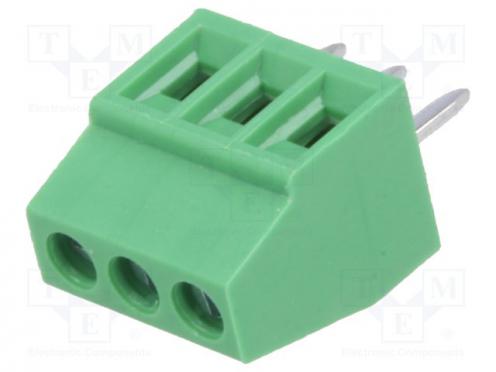

PCB terminal block angled 90° 2.54mm ways 3 on PCBs 1mm2
| Items in stock i | 9581 pieces |
|---|---|
| Barcode: | |
| Number: | TMEDG308-2.54-03P |
| Package: | |
| Min. quantity: | 2 |
| Manufacturer: | DEGSON ELECTRONICS |
Popis produktu
PCB terminal block angled 90° 2.54mm ways 3 on PCBs 1mm2 - Popis produktu
| Manufacturer | DEGSON ELECTRONICS |
|---|---|
| Type of connector | PCB terminal block |
| Spatial orientation | angled 90° |
| Contacts pitch | 2.54mm |
| Number of ways | 3 |
| Mechanical mounting | on PCBs |
| Electrical mounting | cage clamp |
| Electrical mounting | screw terminal |
| Electrical mounting | THT |
| Connector | terminal |
| Contact plating | tinned |
| Current rating | 8A |
| Height | 8.5mm |
| Colour | green |
| Rated voltage | 130V |
| Body material | polyamide 66 |
| Length | 7.62mm |
| Contact material | phosphor bronze |
| Operating temperature | -40...105°C |
| Depth | 6.27mm |
| Flammability rating | UL94V-0 |
| Type of pin configuration | 1x3 |
| Conform to the norm | CE |
| Conform to the norm | UL |
| Conform to the norm | VDE |
| Wire cross section | 1mm2 |
| Wire size | 26AWG...18AWG |
