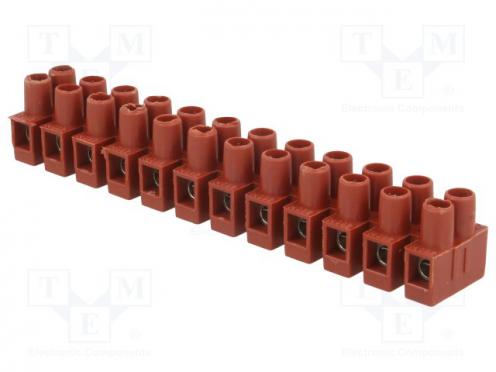

Terminal block screw terminal 2.5mm2 250V ways 12 brown
| Items in stock i | 150 pieces |
|---|---|
| Barcode: | |
| Number: | TMEBM92GFCS |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | BM GROUP |
Popis produktu
Terminal block screw terminal 2.5mm2 250V ways 12 brown - Popis produktu
| Manufacturer | BM GROUP |
|---|---|
| Type of connector | terminal block |
| Electrical mounting | screw terminal |
| Rated voltage | 250V |
| Number of ways | 12 |
| Number of terminals | 24 |
| Mechanical mounting | for cable |
| Mechanical mounting | for panel mounting |
| Mechanical mounting | mounting holes |
| Colour | brown |
| Body material | polyamide |
| Body material | polyamide 66 |
| Operating temperature | max. 140°C |
| Conform to the norm | CE |
| Conform to the norm | CSA |
| Conform to the norm | EN |
| Conform to the norm | UL |
| Height | 15.3mm |
| Contact material | brass |
| Length | 93.5mm |
| Width | 15.2mm |
| Mounting hole diameter | 2.6mm |
| Connectors features | may be easily broken into smaller fragments |
| Connector variant | with wire protector |
| Flammability rating | UL94V-0 |
| Contact plating | nickel plated |
| Kind of material | fiber glass reinforced |
| Wire cross section | 2.5mm2 |
| Wire size | 20AWG...16AWG |
