GSMCentrum.CZ » Electronic components » Resistors » High-performance resistors
| Items in stock i | 285 pieces |
|---|---|
| Barcode: | |
| Number: | TMEAX25WR-0R47 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | TE CONNECTIVITY |

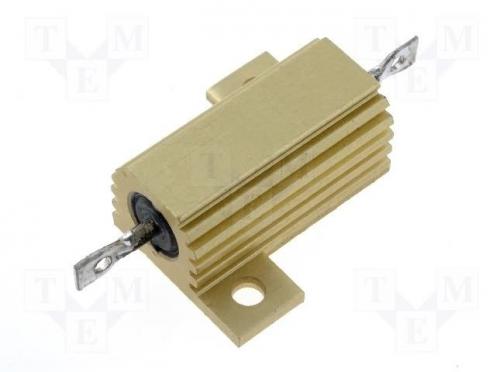

Resistor wire-wound with heatsink screw 470mΩ 25W ±5% - Popis produktu
| Manufacturer | TE Connectivity |
|---|---|
| Type of resistor | wire-wound |
| Kind of resistor | with heatsink |
| Mounting | screw |
| Resistance | 470mΩ |
| Power | 25W |
| Tolerance | ±5% |
| Max. operating voltage | 550V |
| Body dimensions | 29x28x15mm |
| Temperature coefficient | 50ppm/°C |
| Resistor features | needs additional heatsink |
| Resistor features | robust mechanical structure |
| Leads | for soldering |
| Mounting holes pitch | 19.8 x 18.3mm |
| Power without heatsink | 12.5W |
