| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEAX100WR-4R7 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | TE CONNECTIVITY |

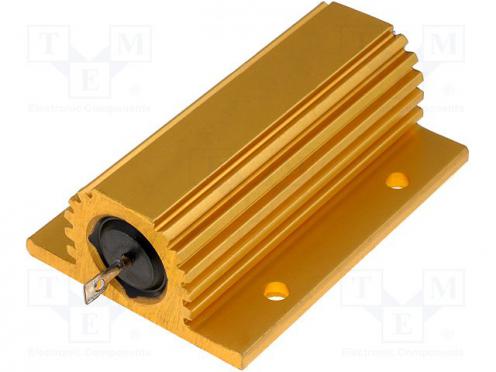

Resistor wire-wound with heatsink screw 4.7Ω 100W ±5% - Popis produktu
| Manufacturer | TE Connectivity |
|---|---|
| Type of resistor | wire-wound |
| Kind of resistor | with heatsink |
| Mounting | screw |
| Resistance | 4.7Ω |
| Power | 100W |
| Tolerance | ±5% |
| Max. operating voltage | 1.9kV |
| Body dimensions | 65.5x47.5x26mm |
| Operating temperature | -55...250°C |
| Temperature coefficient | 50ppm/°C |
| Resistor features | needs additional heatsink |
| Leads | for soldering |
| Mounting holes pitch | 37 x 35mm |
| Power without heatsink | 50W |
| Number of mounting holes | 4 |
| Recommended heatsink | 99500mm2 surface area |
| Recommended heatsink | thickness 3mm |
