GSMCentrum.CZ » Electronic components » Resistors » High-performance resistors
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEHS25-220RF |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | ARCOL |

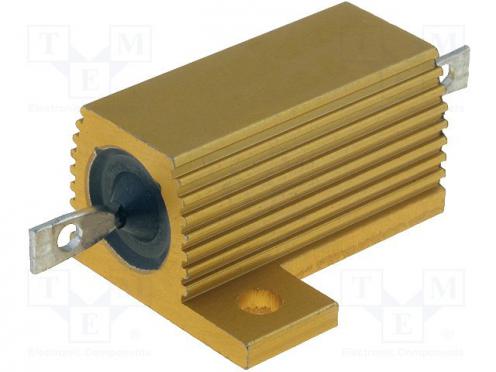

Resistor wire-wound with heatsink screw 220Ω 25W ±1% - Popis produktu
| Manufacturer | ARCOL |
|---|---|
| Type of resistor | wire-wound |
| Kind of resistor | with heatsink |
| Mounting | screw |
| Resistance | 220Ω |
| Power | 25W |
| Tolerance | ±1% |
| Max. operating voltage | 550V |
| Body dimensions | 27.3x28x14.6mm |
| Temperature coefficient | 100ppm/°C |
| Resistor features | needs additional heatsink |
| Leads | for soldering |
| Mounting holes pitch | 18.3 x 19.8mm |
| Power without heatsink | 9W |
