GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Electromagnetic relay for large applications
| Items in stock i | 228 pieces |
|---|---|
| Barcode: | |
| Number: | TMEG4W-2212PUSTV524DC |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | OMRON |

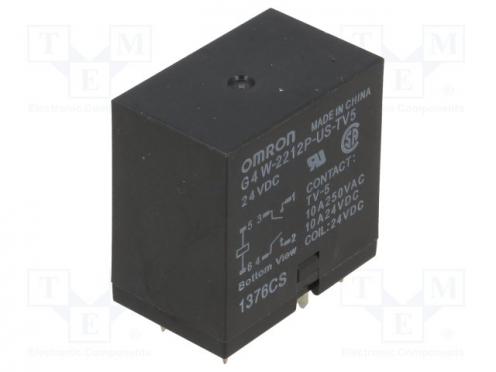

Relay electromagnetic DPST-NO Ucoil 24VDC Icontacts max 10A - Popis produktu
| Manufacturer | OMRON OCB |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | DPST-NO |
| Rated coil voltage | 24V DC |
| Contact current max. | 10A |
| Relay series | G4W |
| Relay variant | power |
| Operating temperature | -25...55°C |
| Mounting | PCB |
| Coil resistance | 720Ω |
| Body dimensions | 30.5x19.5x30.5mm |
| Switched voltage | max. 125V DC |
| Switched voltage | max. 250V AC |
| Coil power consumption | 800mW |
| AC contacts rating @R | 10A / 250V AC |
| Contact resistance | 30mΩ |
| DC contacts rating @R | 10A / 24V DC |
| Leads | for PCB |
| Coil current | 33.3mA |
