GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Industrial Electromagnetic Relay
| Items in stock i | 23 pieces |
|---|---|
| Barcode: | |
| Number: | TMER15-2P-24VDC |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | RELPOL |

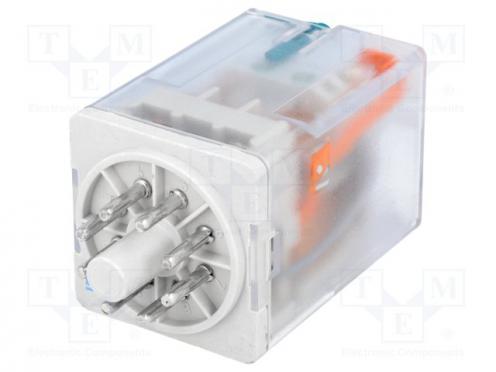

Relay electromagnetic DPDT Ucoil 24VDC 10A/250VAC 10A/24VDC - Popis produktu
| Type of relay | electromagnetic |
|---|---|
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| AC contacts rating @R | 10A / 250VAC |
| DC contacts rating @R | 10A / 24VDC |
| Contact current max. | 20A |
| Switched voltage | max 250V DC |
| Switched voltage | max 440V AC |
| Relay variant | industrial |
| Mounting | socket |
| Relay series | R15 |
| Operating temperature | -40...70°C |
| Body dimensions | 35 x 35 x 54.5mm |
| Coil resistance | 430Ω |
| Contact resistance | 100mΩ |
| Coil power consumption | 1.5W |
| Leads | stud terminals |
| Optional equipment | mechanical indicator |
| Optional equipment | test button with blocking function |
| Number of pins | 8 |
| Electrical connection | round socket |
| Kind of connector | octal |
| Manufacturer | RELPOL |
