GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Miniature Electromagnetic Relay

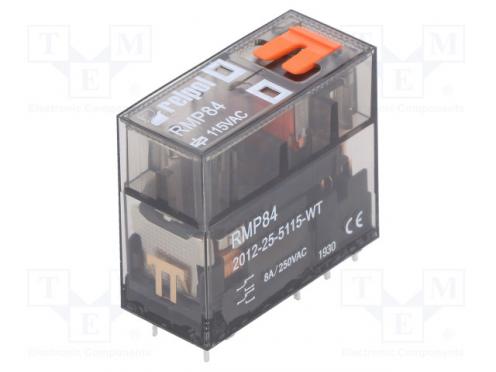

Relay electromagnetic DPDT Ucoil 115VAC 8A 8A/250VAC PCB
| Barcode: | |
| Number: | TMERMP842012255115WT |
| Package: | |
| Min. quantity: | 1 |
| Availability | Only per order |
|---|---|
| Manufacturer: | RELPOL |
Relay electromagnetic DPDT Ucoil 115VAC 8A 8A/250VAC PCB - Popis produktu
| Manufacturer | RELPOL |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 115V AC |
| Contact current max. | 8A |
| AC contacts rating @R | 8A / 250V AC |
| DC contacts rating @R | 8A / 24V DC |
| Switched voltage | max. 250V DC |
| Switched voltage | max. 440V AC |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 8.1kΩ |
| Coil voltage min. | 86.3V AC |
| Coil voltage max. | 126.5V AC |
| Operate time | 15ms |
| Body dimensions | 29x13x25.5mm |
| Release time | 8ms |
| Coil power consumption | 0.75VA |
| IP rating | IP40 |
| Mechanical durability | 1000000 cycles |
| Operating temperature | -40...70°C |
| Weight | 16g |
| Relay series | RMP84 |
| Contact resistance | 100mΩ |
| Contact material | AgNi |
| Terminal pitch | 5.04mm |
| Height | 25.5mm |
| Related items | GD50 |
| Related items | GZF80 |
| Related items | GZMB80 |
| Number of pins | 8 |
| Body colour | transparent tinted |
| Insulation voltage | 5kV |
