Electromagnetic Relay - Kits

GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Electromagnetic Relay - Kits

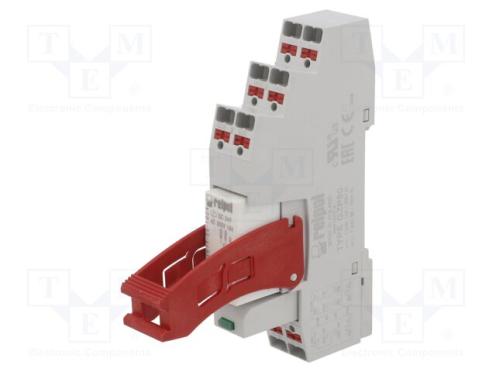

Relay interface SPDT Ucoil 24VDC 16A 16A/250VAC 16A/24VDC

Items in stock i 10 pieces
Barcode:
Number: PI85024DM41GMS2011
Package:
Min. quantity: 1
Manufacturer: RELPOL


£10.27 price without VAT

Select the transport (Price incl. transport)

Quantity

Min. quantity: 1


Shipping Cost

Popis produktu

Relay interface SPDT Ucoil 24VDC 16A 16A/250VAC 16A/24VDC - Popis produktu

ManufacturerRELPOL
Type of relayinterface
Contacts configurationSPDT
Rated coil voltage24V DC
Max. operating current16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 300V AC
Switched voltagemax. 300V DC
Mountingfor DIN rail mounting
Manufacturer seriesPI84T
Leadsscrew terminals
Relay variantRelay set
Operate time7ms
Release time3ms
Operating temperature-40...55°C
Contact materialAgSnO2
Body dimensions15.6x61x80mm
Kit contentsejector
Kit contentsholder
Kit contentsindication module
Kit contentsRM84 relay
Contact resistance100mΩ
Switching capacity2kVA
Flammability ratingUL94V-0
Applicationrailway industry
Conform to the normEN 50155
