GSMCentrum.CZ » Power supplies » Modular power supplies » for LED

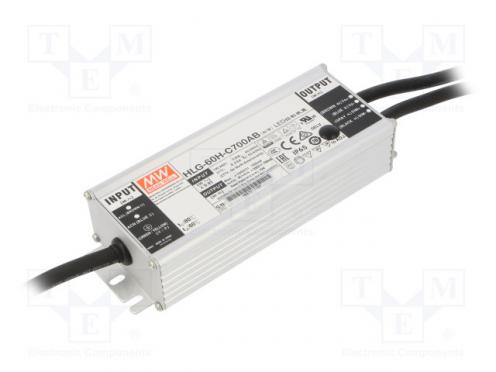

Power supply switched-mode LED 70W 50÷100VDC 420÷700mA IP65
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEHLG-60H-C700AB |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | MEAN WELL |
Popis produktu
Power supply switched-mode LED 70W 50÷100VDC 420÷700mA IP65 - Popis produktu
| Manufacturer | MEAN WELL |
|---|---|
| Type of power supply | switched-mode |
| Application | LED |
| Kind of power supply | constant current |
| Power | 70W |
| Output voltage | 50...100V DC |
| Output current | 420...700mA |
| Supply voltage | 90...305V AC |
| Supply voltage | 127...431V DC |
| IP rating | IP65 |
| Body dimensions | 171x61.5x36.8mm |
| Protection | anti-overvoltage OVP |
| Protection | overheating OTP |
| Protection | short circuit protection SCP |
| Weight | 730g |
| Operating temperature | -40...80°C |
| Electrical connection | 300mm wires FG L N |
| Number of outputs | 1 |
| Additional functions | active PFC |
| Additional functions | adjustable output current level |
| Additional functions | dimming function 1-10V DC |
| Additional functions | PWM controlled dimming function |
| Additional functions | resistance dimming function |
| Manufacturer series | HLG-60H-C |
| Efficiency | 90.5% |
| Kind of case | 957 |
| Power supply/converter features | rated parameters obtained at full load |
