GSMCentrum.CZ » Automation technology » Regulation and control » Regulators

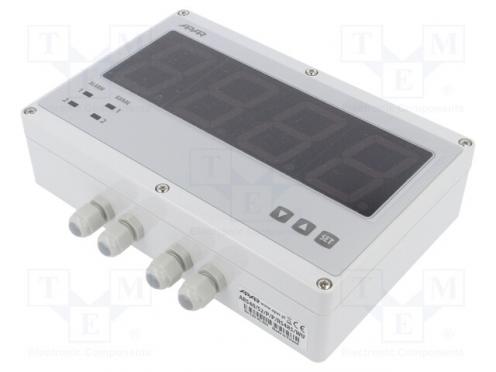

Module regulator pressure,speed,temperature SPST-NO 0÷50°C
| Items in stock i | 1 pieces |
|---|---|
| Barcode: | |
| Number: | TMEAR540S1PPRS485WU |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | APAR |
Popis produktu
Module regulator pressure,speed,temperature SPST-NO 0÷50°C - Popis produktu
| Manufacturer | APAR |
|---|---|
| Type of module | regulator |
| Kind of temperature sensor | Ni100 |
| Kind of temperature sensor | Pt100 |
| Kind of temperature sensor | Pt500 |
| Kind of temperature sensor | Pt1000 |
| Kind of temperature sensor | thermocouple B |
| Kind of temperature sensor | thermocouple E |
| Kind of temperature sensor | thermocouple J |
| Kind of temperature sensor | thermocouple K |
| Kind of temperature sensor | thermocouple N |
| Kind of temperature sensor | thermocouple R |
| Kind of temperature sensor | thermocouple S |
| Kind of temperature sensor | thermocouple T |
| Controlled parameter | pressure |
| Controlled parameter | speed |
| Controlled parameter | temperature |
| Kind of output 1 | SPST-NO |
| Kind of output 2 | SPST-NO |
| Kind of output 3 | 0/2...10V |
| Kind of input 1 | 0...10V DC |
| Kind of input 1 | 0...20mA |
| Kind of input 1 | 0...60mV |
| Kind of input 1 | 0...2500Ω |
| Kind of input 1 | 4...20mA |
| Kind of input 1 | universal |
| Mounting | for wall mounting |
| Output 1 electrical parameters | 250V AC / 5A |
| Output 2 electrical parameters | 250V AC / 5A |
| Controlled parameter range | -1999...9999 |
| Operating temperature | 0...50°C |
| Supply voltage | 85...260V AC |
| Supply voltage | 230V AC |
| The programming method | keypad |
| Body dimensions | 222x146x55mm |
| IP rating | IP65 |
| Input 1 properties | analogue voltage |
| Input 1 properties | current analog |
| Input 1 properties | RTD |
| Kind of display used | 4-digit LED |
| Display height 1 | 57mm |
| Additional functions | signalling of detected errors with a messages on the display, signal digital filtering, sensors supply voltage 24V DC / 30mA |
| Additional functions | temperature compensation of thermocouple cold ends |
| Additional functions | universal input (selected from keypad) |
| Interface | RS485 |
