GSMCentrum.CZ » Automation technology » Regulation and control » Regulators

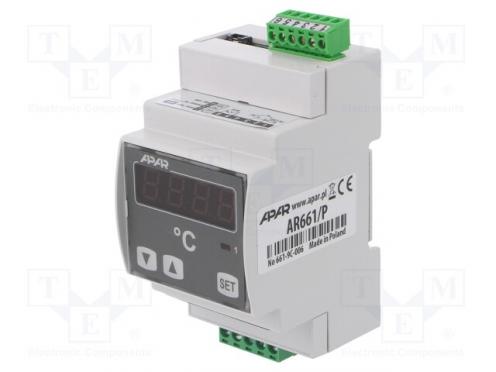

Module regulator temperature SPDT DIN OUT 1 250VAC/8A 0÷50°C
| Items in stock i | 8 pieces |
|---|---|
| Barcode: | |
| Number: | TMEAR661/P |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | APAR |
Popis produktu
Module regulator temperature SPDT DIN OUT 1 250VAC/8A 0÷50°C - Popis produktu
| Manufacturer | APAR |
|---|---|
| Type of module | regulator |
| Kind of temperature sensor | Pt100 |
| Kind of temperature sensor | thermocouple B |
| Kind of temperature sensor | thermocouple E |
| Kind of temperature sensor | thermocouple J |
| Kind of temperature sensor | thermocouple K |
| Kind of temperature sensor | thermocouple N |
| Kind of temperature sensor | thermocouple R |
| Kind of temperature sensor | thermocouple S |
| Kind of temperature sensor | thermocouple T |
| Controlled parameter | temperature |
| Kind of output 1 | SPDT |
| Kind of input 1 | digital |
| Kind of input 1 | RTD |
| Kind of input 1 | thermocouple |
| Kind of input 1 | universal |
| Regulation for output 1 | AUTOTUNING |
| Regulation for output 1 | ON-OFF |
| Regulation for output 1 | ON-OFF with hysteresis |
| Regulation for output 1 | PID |
| Mounting | DIN |
| Output 1 electrical parameters | 250V AC / 8A |
| Controlled parameter range | -1999...9999 |
| Operating temperature | 0...50°C |
| Supply voltage | 15...250V AC |
| Supply voltage | 20...350V DC |
| The programming method | foil keypad |
| Body dimensions | 53x90x62mm |
| IP rating | IP20 at terminal side |
| IP rating | IP40 (from the front) |
| Input 1 properties | RTD |
| Input 1 properties | thermocouple |
| Kind of display used | 4-digit LED |
| Display height 1 | 10mm |
