| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TME34156 |
| Package: | |
| Min. quantity: | 1 |
| barva: | Červená |
| Manufacturer: | TE CONNECTIVITY |

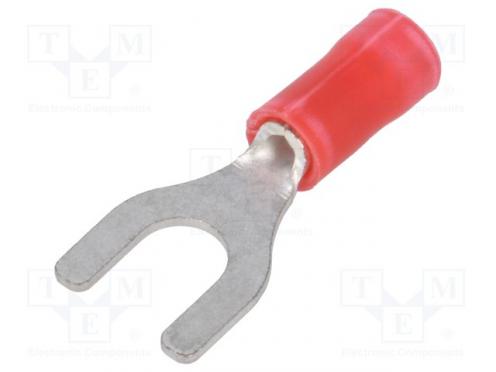

Fork terminal M4,5 Ø 5mm 0.26÷1.65mm2 crimped for cable red - Popis produktu
| Manufacturer | TE Connectivity |
|---|---|
| Type of tip | fork terminal |
| Hole for screw | M4,5 |
| Ring inside diameter | 5mm |
| Electrical mounting | crimped |
| Mechanical mounting | for cable |
| Ferrule variant | insulated |
| Contact plating | tinned |
| Colour | red |
| Contact material | copper |
| Insulator material | vinyl |
| Operating temperature | max. 105°C |
| Connector series | PLASTI-GRIP |
| Wire size | 22AWG - 16AWG |
| Wire cross section | 0.26...1.65mm2 |
