GSMCentrum.CZ » Electronic components » Wires and cables » Cables for chain bridges
| Items in stock i | 50 pieces |
|---|---|
| Barcode: | |
| Number: | TMECFBUS.PVC.060 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | IGUS |

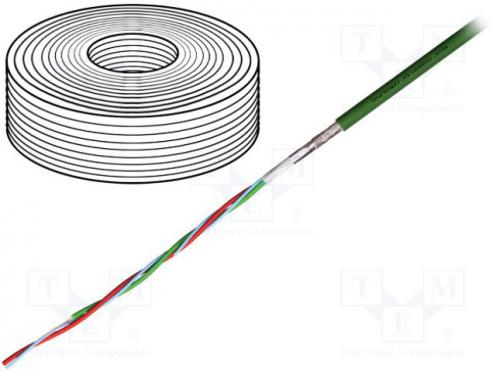

Wire data transmission chainflex® CFBUS.PVC 4x0,38mm2 green - Popis produktu
| Manufacturer | IGUS |
|---|---|
| Type of wire | data transmission |
| Kind of wire | chainflex® CFBUS.PVC |
| Insulation colour | green |
| Core structure | stranded |
| Kind of core | Cu |
| Operating temperature | -5...70°C |
| Shield structure | shielded |
| Shield structure | tinned copper braid |
| Wire insulation material | PVC |
| Cable external diameter | 7mm |
| Number of cores | 4 |
| Rated voltage | 50V |
| Core section | 0.38mm2 |
| Core marking | coloured |
| CPR standard | no classification |
| Earth core | none |
| Wave impedance | 100Ω |
| Resistance to | most of oils |
| Resistance to | UV rays |
| Cable application | indoor |
| Cable application | industrial applications |
| Cable application | industrial Ethernet |
| Cable application | power chain |
| Cable application | PROFINET |
| Cable features | no flame propagation |
| Cable features | self-supporting |
