| Items in stock i | 201 pieces |
|---|---|
| Barcode: | |
| Number: | TMEDEVICENET2422PUR |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | HELUKABEL |

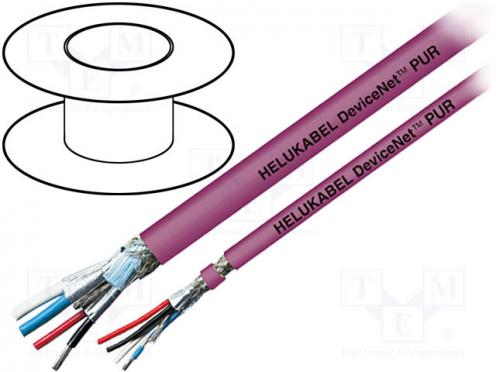

Wire data transmission hybrid 1x2x24AWG+1x2x22AWG violet - Popis produktu
| Manufacturer | HELUKABEL |
|---|---|
| Type of wire | data transmission |
| Kind of wire | hybrid |
| Insulation colour | violet |
| Core structure | stranded |
| Kind of core | Cu |
| Kind of core | tinned |
| Operating temperature | -40...80°C |
| Shield structure | Al foil |
| Shield structure | shielded twofold |
| Shield structure | tinned copper braid |
| Wire insulation material | PUR |
| Cable external diameter | 7mm |
| Number of cores | 4 |
| Core marking | colours without colour repetition |
| CPR standard | no classification |
| Earth core | none |
| No. of pairs | 2 |
| Core diameter | 22AWG, 24AWG |
| Resistance to | fire |
| Resistance to | mechanical stesses |
| Resistance to | most of oils |
| Resistance to | to weather conditions |
| Cable application | DeviceNet |
| Cable application | indoor |
| Cable application | power chain |
| Cable features | no flame propagation |
| Cable features | twisted pair conductors |
| Kind of material | halogen free |
