GSMCentrum.CZ » Electronic components » Wires and cables » Cables for chain bridges
| Items in stock i | 191 pieces |
|---|---|
| Barcode: | |
| Number: | TMECF10.05.04 |
| Package: | |
| Min. quantity: | 1 |
| barva: | Černá |
| Manufacturer: | IGUS |

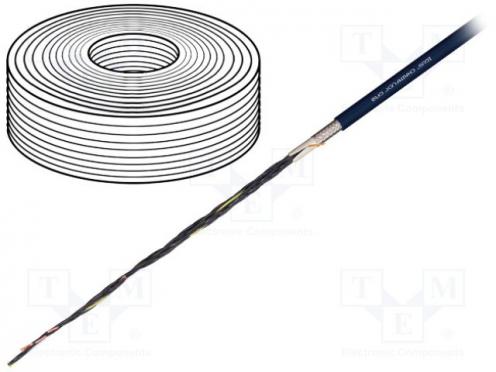

Wire control cable chainflex® CF10 4x0,5mm2 black stranded - Popis produktu
| Manufacturer | IGUS |
|---|---|
| Type of wire | control cable |
| Kind of wire | chainflex® CF10 |
| Insulation colour | black |
| Core structure | stranded |
| Kind of core | Cu |
| Operating temperature | -35...100°C |
| Shield structure | shielded |
| Shield structure | tinned copper braid |
| Wire insulation material | elastomer thermoplastic TPE |
| Cable external diameter | 7mm |
| Number of cores | 4 |
| Rated voltage | 300/500V |
| Core section | 0.5mm2 |
| Core marking | coloured |
| CPR standard | no classification |
| Earth core | none |
| Resistance to | mineral oils |
| Resistance to | moisture |
| Resistance to | most of oils |
| Resistance to | temperature |
| Resistance to | UV rays |
| Cable application | control for machines |
| Cable application | indoor |
| Cable application | industrial applications |
| Cable application | outdoor |
| Cable application | power chain |
| Cable application | rapid handling systems |
| Cable features | self-supporting |
| Kind of material | halogen free |
