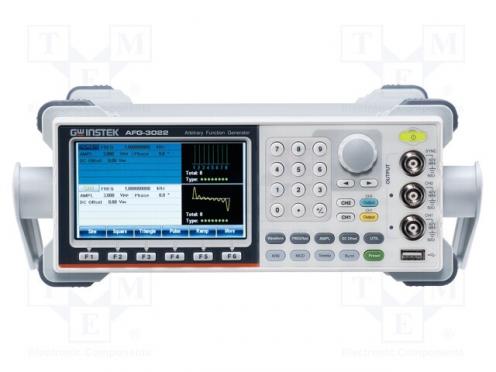

Generator arbitrary, function 30MHz colour,TFT 4,3" Ch 2
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEAFG-3032 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | GW INSTEK |
Popis produktu
Generator arbitrary, function 30MHz colour,TFT 4,3" Ch 2 - Popis produktu
| Manufacturer | GW INSTEK |
|---|---|
| Type of generator | arbitrary, function |
| Maximum waveform frequency | 30MHz |
| Waveform frequency range | 1µHz...1MHz (ramp waveform) |
| Waveform frequency range | 1µHz...1MHz (triangle waveform) |
| Waveform frequency range | 1µHz...25MHz (pulse waveform) |
| Waveform frequency range | 1µHz...30MHz (rectangular waveform) |
| Waveform frequency range | 1µHz...30MHz (sinus waveform) |
| Kind of display used | colour |
| Kind of display used | TFT 4,3" |
| Number of channels | 2 |
| Memory record length | 8Mpts |
| Vertical resolution | 16bit |
| Output parameters | impedance: 50Ω |
| Weight | 4kg |
| Dimensions | 265x107x374mm |
| Interface | LAN |
| Interface | USB |
| Kind of modulation | AM |
| Kind of modulation | FM |
| Kind of modulation | FSK |
| Kind of modulation | MSK |
| Kind of modulation | PSK |
| Kind of modulation | PWM |
| Kind of modulation | QAM |
| Kind of modulation | SUM |
| Waveforms | arbitrary |
| Waveforms | burst |
| Waveforms | cardiac |
| Waveforms | DC |
| Waveforms | ECG1 |
| Waveforms | ECG2 |
| Waveforms | ECG3 |
| Waveforms | harmonic |
| Waveforms | ignition |
| Waveforms | impulse |
| Waveforms | ISO7637-2 TP2B |
| Waveforms | ISO7637-2 TP3A |
| Waveforms | ISO7637-2 TP3B |
| Waveforms | noise |
| Waveforms | rectangular |
| Waveforms | sinus |
| Waveforms | sweep |
| Waveforms | triangle |
| Sampling | 250Msps |
| Standard equipment | BNC cable |
| Measuring instrument features | 10 sets memory |
| Measuring instrument features | insulated outputs |
| Measuring instrument features | possibility to connect 4 units in series or 6 in parallel |
| Software | included |
| Manufacturer series | AFG-3000 |
| Supply voltage | 100...240V AC |
