GSMCentrum.CZ » Measuring instruments » Multimeters, measuring instruments » Multimeters » Digital Multimeters

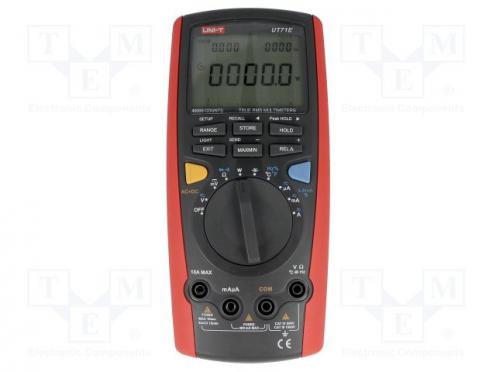

Digital multimeter USB LCD (40000) Bargraph 40withegm.10x/with
| Barcode: | |
| Number: | TMEUT71E |
| Package: | |
| Min. quantity: | 1 |
| Items in stock i | 10 pieces |
|---|---|
| Manufacturer: | UNI-T |
Digital multimeter USB LCD (40000) Bargraph 40withegm.10x/with - Popis produktu
| Manufacturer | UNI-T |
|---|---|
| Type of meter | digital multimeter |
| Interface | USB |
| Measurement | AC current |
| Measurement | active power |
| Measurement | AC voltage |
| Measurement | capacitance |
| Measurement | DC current |
| Measurement | DC voltage |
| Measurement | frequency |
| Measurement | resistance |
| Measurement | temperature |
| Kind of display used | LCD (40000) |
| Bargraph | 40 segm. 10x/s |
| DC voltage measuring range | 400mV |
| DC voltage measuring range | 4V |
| DC voltage measuring range | 40V |
| DC voltage measuring range | 400V |
| DC voltage measuring range | 1kV |
| DC voltage measuring accuracy | ±(0,05% + 5 digits) |
| AC voltage measuring range | 4V |
| AC voltage measuring range | 40V |
| AC voltage measuring range | 400V |
| AC voltage measuring range | 1kV |
| AC voltage measuring accuracy | ±(0,4% + 30 digits) |
| DC current measuring range | 400µA |
| DC current measuring range | 4000µA |
| DC current measuring range | 40mA |
| DC current measuring range | 400mA |
| DC current measuring range | 10A |
| AC current measuring range | 400µA |
| AC current measuring range | 4000µA |
| AC current measuring range | 40mA |
| AC current measuring range | 400mA |
| AC current measuring range | 10A |
| DC current measuring accuracy | ±(0,15% + 15 digits) |
| AC current measuring accuracy | ±(1,5% + 20 digits) |
| True effective value measurement | True RMS |
| Resistance measuring range | 400Ω |
| Resistance measuring range | 4kΩ |
| Resistance measuring range | 40kΩ |
| Resistance measuring range | 400kΩ |
| Resistance measuring range | 4MΩ |
| Resistance measuring range | 40MΩ |
| Resistance measuring accuracy | ±(0,5% + 20 digits) |
| Capacitance measuring range | 40nF |
| Capacitance measuring range | 400nF |
| Capacitance measuring range | 4µF |
| Capacitance measuring range | 40µF |
| Capacitance measuring range | 400µF |
| Capacitance measuring range | 4mF |
| Capacitance measuring range | 40mF |
| Capacitance measuring accuracy | ±(1% + 20 digits) |
| Frequency measuring range | 40Hz |
| Frequency measuring range | 400Hz |
| Frequency measuring range | 4kHz |
| Frequency measuring range | 40kHz |
| Frequency measuring range | 400kHz |
| Frequency measuring range | 4MHz |
| Frequency measuring range | 40MHz |
| Frequency measuring range | 400MHz |
| Frequency measuring accuracy | ±(0,01% + 8 digits) |
| Temperature measuring range | -40...1000°C |
| Temperature measurement accuracy | ±(1% + 30 digits) |
| Temperature measurement resolution | 0.1°C |
| Active power measuring accuracy | ±(2% + 50 digits) |
| Diode test | 2.8V |
| Continuity test | acoustic signal for R<40Ω |
| Weight with battery | 340g |
| Power supply | 1 battery 9V 6F22 |
| Standard equipment | adapter for power measurement |
| Standard equipment | battery |
| Standard equipment | case |
| Standard equipment | crocodile clips |
| Standard equipment | temperature probe |
| Standard equipment | test leads |
| Standard equipment | USB cable |
| Conform to the norm | EN61010 600V CAT IV |
| Conform to the norm | EN61010 1000V CAT III |
| Related items | 5790D |
| Related items | 5793D |
| Related items | 5794D |
| Related items | 5795D |
| Related items | 5797D |
| Related items | BKP60 |
| Related items | EX871515 |
| Related items | EX881602 |
| Related items | EX881603 |
| Related items | EX881605 |
| Related items | PKT-PTA |
| Related items | PKT-PTF-10 |
| Related items | PKT-PTF-20 |
| Related items | PKT-PTF-25 |
| Related items | PKT-PTF-30 |
| Related items | PKT-PTF-40 |
| Related items | PKT-PTF-50 |
| Related items | PKT-PTF-55 |
| Related items | PKT-PTF-56 |
| Related items | PKT-PTF-60 |
| Related items | SE027 |
| Related items | SE028 |
| Related items | SE029 |
| Related items | SE030 |
| Related items | SE031 |
| Related items | SE059 |
| Related items | SE060 |
| Related items | SE061 |
| Related items | SE062 |
| Related items | SE001 |
| Related items | SE002 |
| Related items | SE003 |
| Related items | SE004 |
| Related items | SE000 |
| Related items | TESTO-06020393 |
| Related items | TESTO-06020645 |
| Related items | TESTO-06024592 |
| Related items | TESTO-06024892 |
| Related items | TESTO-06280020 |
| Related items | TESTO-06281292 |
| Related items | TESTO-06287533 |
| Related items | TP200 |
| Related items | TP400 |
| Related items | TP870 |
| Related items | TP873 |
| Related items | TP873-5M |
| Related items | TP882 |
| Related items | TP-111 |
| Related items | TP-112 |
| Related items | TP-02 |
| Related items | TP-03 |
| Related items | TP-04 |
| Related items | TP-06 |
| Related items | TP-08 |
| Related items | TP-09 |
| Related items | TPK-59 |
| Related items | TPK-62 |
| Related items | UTT10K |
| Related items | UTT12 |
| Kind of output connector | USB A plug |
| Protection | anti-overload |
| Dimensions (W x H x D) | 85x177x40mm |
| Measuring instrument features | auto and manual ranging |
| Measuring instrument features | HOLD function |
| Measuring instrument features | low battery indicator |
| Measuring instrument features | measures current loop signals 4-20mA |
| Measuring instrument features | MIN/MAX/REL function |
| Active power measurement | 0...2.5kW |
