GSMCentrum.CZ » Measuring instruments » Multimeters, measuring instruments » Multimeters » Digital Multimeters

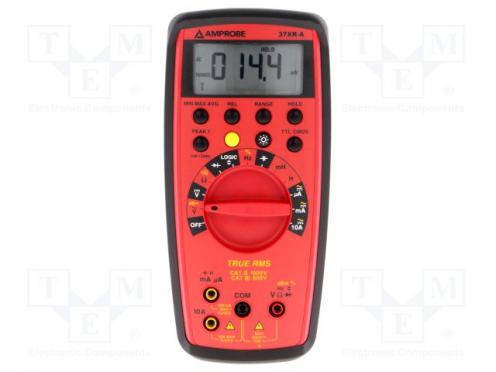

Digitandl multimeter LCD 4,75 digit (9999),with and bandcklit
| Barcode: | |
| Number: | TME37XR-A |
| Package: | |
| Min. quantity: | 1 |
| Items in stock i | 12 pieces |
|---|---|
| Manufacturer: | BEHA-AMPROBE |
Digitandl multimeter LCD 4,75 digit (9999),with and bandcklit - Popis produktu
| Manufacturer | BEHA-AMPROBE |
|---|---|
| Type of meter | digital multimeter |
| Measurement | AC current |
| Measurement | AC voltage |
| Measurement | capacitance |
| Measurement | dB |
| Measurement | DC current |
| Measurement | DC voltage |
| Measurement | frequency |
| Measurement | resistance |
| Kind of display used | LCD 4,75 digit (9999) |
| Kind of display used | with a backlit |
| Bargraph | 41 segm. |
| DC voltage measuring range | 0.1...1000mV |
| DC voltage measuring range | 10V |
| DC voltage measuring range | 100V |
| DC voltage measuring range | 1kV |
| DC voltage measuring accuracy | ±(0,1% + 5 digits) |
| AC voltage measuring range | 0.1...1000mV |
| AC voltage measuring range | 10V |
| AC voltage measuring range | 100V |
| AC voltage measuring range | 750V |
| AC voltage measuring accuracy | ±(1,2% + 10 digits) |
| DC current measuring range | 0.01...100µA |
| DC current measuring range | 1000µA |
| DC current measuring range | 10mA |
| DC current measuring range | 100mA |
| DC current measuring range | 400mA |
| DC current measuring range | 10A |
| AC current measuring range | 0.01...100µA |
| AC current measuring range | 1000µA |
| AC current measuring range | 10mA |
| AC current measuring range | 100mA |
| AC current measuring range | 400mA |
| AC current measuring range | 10A |
| DC current measuring accuracy | ±(0,5% + 10 digits) |
| AC current measuring accuracy | ±(1,5% + 10 digits) |
| True effective value measurement | True RMS AC |
| Resistance measuring range | 100mΩ...1kΩ |
| Resistance measuring range | 10kΩ |
| Resistance measuring range | 100kΩ |
| Resistance measuring range | 1000kΩ |
| Resistance measuring range | 10MΩ |
| Resistance measuring range | 40MΩ |
| Resistance measuring accuracy | ±(0,5% + 8 digits) |
| Capacitance measuring range | 0.01...40nF |
| Capacitance measuring range | 400nF |
| Capacitance measuring range | 4µF |
| Capacitance measuring range | 40µF |
| Capacitance measuring range | 400µF |
| Capacitance measuring accuracy | ±(3% + 10 digits) |
| Inductance measuring range | 1µH...4mH |
| Inductance measuring range | 40mH |
| Inductance measuring range | 400mH |
| Inductance measuring range | 4H |
| Inductance measuring range | 40H |
| Inductance measuring accuracy | ±(5% + 30 digits) |
| Frequency measuring range | 3...100Hz |
| Frequency measuring range | 1kHz |
| Frequency measuring range | 10kHz |
| Frequency measuring range | 100kHz |
| Frequency measuring range | 1MHz |
| Frequency measuring range | 10MHz |
| Frequency measuring accuracy | ±(0,1% + 5 digits) |
| Duty cycle factor | 0...90% |
| Measures dBm | -13...50dBm |
| Diode test | 1mA @3V |
| Continuity test | acoustic signal for R<40Ω |
| Pollution degree | 2 |
| Weight with battery | 482g |
| Power supply | 1 battery 9V 6F22 |
| Standard equipment | battery |
| Standard equipment | crocodile clips |
| Standard equipment | Magne-Grip magnetic catch |
| Standard equipment | test leads TL36A |
| Conform to the norm | EN61010 600V CAT III |
| Conform to the norm | EN61010 1000V CAT II |
| Dimensions (W x H x D) | 92x196x60mm |
| Measuring instrument features | auto and manual ranging |
| Measuring instrument features | automatic power-off |
| Measuring instrument features | checks logic state of TTL/CMOS ICs at 20MHz |
| Measuring instrument features | HOLD function |
| Measuring instrument features | impact resistant holster |
| Measuring instrument features | low battery indicator |
| Measuring instrument features | MIN/MAX/MEDIUM function |
| Measuring instrument features | PEAK HOLD MIN/MAX function |
| Measuring instrument features | REL function |
