GSMCentrum.CZ » Measuring instruments » Multimeters, measuring instruments » Multimeters » Digital Multimeters

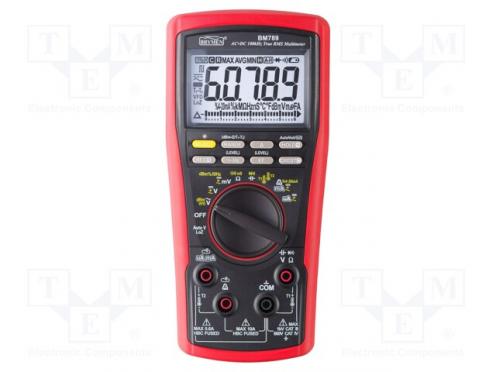

Digital multimeter LCD 4-5/6 digitwith (60000),bargraph 5x/with
| Barcode: | |
| Number: | TMEBM789 |
| Package: | |
| Min. quantity: | 1 |
| Items in stock i | 27 pieces |
|---|---|
| Manufacturer: | BRYMEN |
Digital multimeter LCD 4-5/6 digitwith (60000),bargraph 5x/with - Popis produktu
| Manufacturer | BRYMEN |
|---|---|
| Type of meter | digital multimeter |
| Measurement | AC current |
| Measurement | AC voltage |
| Measurement | capacitance |
| Measurement | continuity |
| Measurement | dBm |
| Measurement | DC current |
| Measurement | DC voltage |
| Measurement | duty cycle |
| Measurement | frequency |
| Measurement | resistance |
| Measurement | temperature |
| Kind of display used | bargraph |
| Kind of display used | LCD 4-5/6 digits (60000) |
| Sampling | 5x/s |
| DC voltage measuring range | 600mV |
| DC voltage measuring range | 6V |
| DC voltage measuring range | 60V |
| DC voltage measuring range | 600V |
| DC voltage measuring range | 1kV |
| DC voltage measuring accuracy | ±(0.03% + 2 digits) |
| AC voltage measuring range | 600mV |
| AC voltage measuring range | 6V |
| AC voltage measuring range | 60V |
| AC voltage measuring range | 600V |
| AC voltage measuring range | 1kV |
| AC voltage measuring accuracy | ±(0,5% + 30 digits) |
| Bandwidth for AC voltage measurements | 50Hz...100kHz |
| DC current measuring range | 600µA |
| DC current measuring range | 6000µA |
| DC current measuring range | 60mA |
| DC current measuring range | 600mA |
| DC current measuring range | 6A |
| DC current measuring range | 10A |
| AC current measuring range | 600µA |
| AC current measuring range | 6000µA |
| AC current measuring range | 60mA |
| AC current measuring range | 600mA |
| AC current measuring range | 6A |
| AC current measuring range | 10A |
| DC current measuring accuracy | ±(0,075% + 20 digits) |
| AC current measuring accuracy | ±(0,9% + 20 digits) |
| Bandwidth for AC current measurements | 40Hz...3kHz |
| True effective value measurement | True RMS |
| Resistance measuring range | 600Ω |
| Resistance measuring range | 6kΩ |
| Resistance measuring range | 60kΩ |
| Resistance measuring range | 600kΩ |
| Resistance measuring range | 6MΩ |
| Resistance measuring range | 60MΩ |
| Resistance measuring accuracy | ±(0,085% + 4 digits) |
| Capacitance measuring range | 10nF |
| Capacitance measuring range | 100nF |
| Capacitance measuring range | 1µF |
| Capacitance measuring range | 10µF |
| Capacitance measuring range | 1mF |
| Capacitance measuring range | 10mF |
| Capacitance measuring accuracy | ±(1% + 2 digits) |
| Frequency measuring range | 5...1MHz |
| Frequency measuring accuracy | ±(0,002% + 4 digits) |
| Temperature measuring range | -200...1090°C |
| Temperature measurement accuracy | ±(1% + 1°C) |
| Diode test | 0.35mA @3V |
| Continuity test | acoustic signal for 100Ω |
| Pollution degree | 2 |
| Weight | 635g |
| Power supply | 3 batteries 1,5V (AAA) |
| Standard equipment | K-type temperature probe |
| Standard equipment | test leads |
| Standard equipment | user's manual |
| Conform to the norm | EN61010 600V CAT IV |
| Conform to the norm | EN61010 1000V CAT III |
| Dimensions (W x H x D) | 193x89x51mm |
| Measuring instrument features | automatic power-off |
| Measuring instrument features | autoranging |
| Measuring instrument features | contactless voltage detector |
| Measuring instrument features | HOLD function |
| Measuring instrument features | indicates incorrect connection of test leads |
| Measuring instrument features | low input impedance function (LoZ) |
| Measuring instrument features | measures current loop signals 4-20mA |
| Measuring instrument features | measures digital logic level frequencies and duty cycles |
| Measuring instrument features | MIN/MAX/AVG function |
| Measuring instrument features | REL function |
