GSMCentrum.CZ » Measuring instruments » Multimeters, measuring instruments » Multimeters » Digital Multimeters

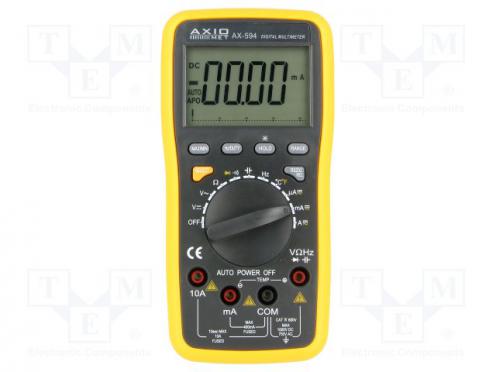

Digital multimeter USB LCD 3,75 digit (3999) 3x/with -20÷1000°C
| Barcode: | |
| Number: | TMEAX-594 |
| Package: | |
| Min. quantity: | 1 |
| Items in stock i | 25 pieces |
|---|---|
| Manufacturer: | AXIOMET |
Digital multimeter USB LCD 3,75 digit (3999) 3x/with -20÷1000°C - Popis produktu
| Manufacturer | AXIOMET |
|---|---|
| Type of meter | digital multimeter |
| Interface | USB |
| Measurement | AC current |
| Measurement | AC voltage |
| Measurement | capacitance |
| Measurement | DC current |
| Measurement | DC voltage |
| Measurement | frequency |
| Measurement | resistance |
| Measurement | temperature |
| Kind of display used | LCD 3,75 digit (3999) |
| Bargraph | 41 segm. 30x/s |
| Sampling | 3x/s |
| DC voltage measuring range | 0.1...400mV |
| DC voltage measuring range | 4V |
| DC voltage measuring range | 40V |
| DC voltage measuring range | 400V |
| DC voltage measuring range | 1kV |
| DC voltage measuring accuracy | ±(0,5% + 4 digits) |
| AC voltage measuring range | 0.1...400mV |
| AC voltage measuring range | 4V |
| AC voltage measuring range | 40V |
| AC voltage measuring range | 400V |
| AC voltage measuring range | 750V |
| AC voltage measuring accuracy | ±(0,8% + 10 digits) |
| DC current measuring range | 1...400µA |
| DC current measuring range | 4mA |
| DC current measuring range | 40mA |
| DC current measuring range | 400mA |
| DC current measuring range | 4A |
| DC current measuring range | 10A |
| AC current measuring range | 1...400µA |
| AC current measuring range | 4mA |
| AC current measuring range | 40mA |
| AC current measuring range | 400mA |
| AC current measuring range | 4A |
| AC current measuring range | 10A |
| DC current measuring accuracy | ±(1% + 10 digits) |
| AC current measuring accuracy | ±(1,5% + 10 digits) |
| Resistance measuring range | 100mΩ...400Ω |
| Resistance measuring range | 4kΩ |
| Resistance measuring range | 40kΩ |
| Resistance measuring range | 400kΩ |
| Resistance measuring range | 4MΩ |
| Resistance measuring range | 40MΩ |
| Resistance measuring accuracy | ±(0,8% + 4 digits) |
| Capacitance measuring range | 10pF...40nF |
| Capacitance measuring range | 400nF |
| Capacitance measuring range | 4µF |
| Capacitance measuring range | 40µF |
| Capacitance measuring range | 200µF |
| Capacitance measuring accuracy | ±(3,5% + 8 digits) |
| Frequency measuring range | 10mHz...10Hz |
| Frequency measuring range | 100Hz |
| Frequency measuring range | 1kHz |
| Frequency measuring range | 10kHz |
| Frequency measuring range | 100kHz |
| Frequency measuring range | 1MHz |
| Frequency measuring range | 30MHz |
| Frequency measuring accuracy | ±(0,5% + 4 digits) |
| Temperature measuring range | -20...1000°C |
| Temperature measurement accuracy | ±(1% + 5 digits) |
| Duty cycle factor | 0.1...99.9% |
| Diode test | 1mA |
| Continuity test | acoustic indication |
| Weight with battery | 350g |
| Power supply | 2 batteries 1,5V LR03 (AAA) |
| Power supply | set without battery |
| Standard equipment | K-type temperature probe |
| Standard equipment | software |
| Standard equipment | test leads |
| Standard equipment | USB cable |
| Optional equipment | test leads AX-TL-4B1-B |
| Optional equipment | test leads AX-TL-4B1-BL |
| Optional equipment | test leads AX-TL-4B1-R |
| Optional equipment | test leads AX-TL-BNC-4BP2 |
| Optional equipment | test leads AX-TLP-001 |
| Optional equipment | test leads AX-TLP-001T |
| Optional equipment | test leads AX-TLP-002 |
| Optional equipment | test leads AX-TLP-003 |
| Optional equipment | test leads AX-TLS-001B |
| Optional equipment | test leads AX-TLS-002B |
| Optional equipment | test leads AX-TLS-003A |
| Optional equipment | test leads AX-TLS-004A |
| Optional equipment | test leads AX-TLS-005A |
| Optional equipment | test leads AX-TLS-007S |
| Optional equipment | test leads PPOM-14 |
| Optional equipment | test tweezers AX-TLP-TW-01 |
| Conform to the norm | EN61010 600V CAT IV |
| Related items | 5790D |
| Related items | 5793D |
| Related items | 5794D |
| Related items | 5795D |
| Related items | 5797D |
| Related items | BKP60 |
| Related items | EX871515 |
| Related items | EX881602 |
| Related items | EX881603 |
| Related items | EX881605 |
| Related items | PKT-PTA |
| Related items | PKT-PTF-10 |
| Related items | PKT-PTF-20 |
| Related items | PKT-PTF-25 |
| Related items | PKT-PTF-30 |
| Related items | PKT-PTF-40 |
| Related items | PKT-PTF-50 |
| Related items | PKT-PTF-55 |
| Related items | PKT-PTF-56 |
| Related items | PKT-PTF-60 |
| Related items | SE027 |
| Related items | SE028 |
| Related items | SE029 |
| Related items | SE030 |
| Related items | SE031 |
| Related items | SE059 |
| Related items | SE060 |
| Related items | SE061 |
| Related items | SE062 |
| Related items | SE001 |
| Related items | SE002 |
| Related items | SE003 |
| Related items | SE004 |
| Related items | SE000 |
| Related items | TESTO-06020393 |
| Related items | TESTO-06020645 |
| Related items | TESTO-06024592 |
| Related items | TESTO-06024892 |
| Related items | TESTO-06280020 |
| Related items | TESTO-06281292 |
| Related items | TESTO-06287533 |
| Related items | TP200 |
| Related items | TP400 |
| Related items | TP870 |
| Related items | TP873 |
| Related items | TP873-5M |
| Related items | TP882 |
| Related items | TP-111 |
| Related items | TP-112 |
| Related items | TP-02 |
| Related items | TP-03 |
| Related items | TP-04 |
| Related items | TP-06 |
| Related items | TP-08 |
| Related items | TP-09 |
| Related items | TPK-59 |
| Related items | TPK-62 |
| Related items | UTT10K |
| Related items | UTT12 |
| Kind of output connector | USB A plug |
| Dimensions (W x H x D) | 93x191x48mm |
| Measuring instrument features | automatic power-off |
| Measuring instrument features | autoranging |
| Measuring instrument features | HOLD function |
| Measuring instrument features | impact resistant holster |
| Measuring instrument features | low battery indicator |
| Measuring instrument features | MIN/MAX function |
| Measuring instrument features | overflow indicator |
| Measuring instrument features | REL function |
