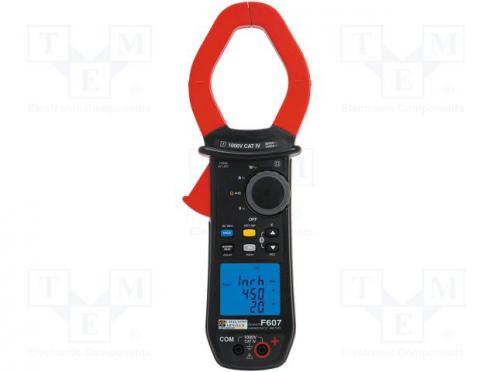

AC/DC digital clamp meter Øcable 60mm I DC 0,15÷3000A 640g
| Items in stock i | 1 pieces |
|---|---|
| Barcode: | |
| Number: | TMECA-F607 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | CHAUVIN ARNOUX |
Popis produktu
AC/DC digital clamp meter Øcable 60mm I DC 0,15÷3000A 640g - Popis produktu
| Type of meter | AC/DC digital clamp meter |
|---|---|
| Max. diameter of measured cable | 60mm |
| Kind of display used | LCD (10000) |
| Kind of display used | with a backlit |
| DC current measuring range | 0,15...3000A |
| Measuring instrument features | automatic power-off |
| Measuring instrument features | HOLD function |
| Measuring instrument features | MIN/MAX function |
| Measuring instrument features | selection of AC or AC+DC measurement |
| Measuring instrument features | harmonics analyser |
| Measuring instrument features | PEAK function |
| Measuring instrument features | low battery indicator |
| Measuring instrument features | True InRush function |
| Measuring instrument features | 934 measurement memory |
| DC current measuring accuracy | ±(1% + 3 digits) |
| AC current measuring range | 0,15...2000A |
| AC current measuring accuracy | ±(1% + 3 digits) |
| DC voltage measuring range | 0,15...1400V |
| DC voltage measuring accuracy | ±(1% + 3 digits) |
| AC voltage measuring range | 0,15...1000V |
| AC voltage measuring accuracy | ±(1% + 3 digits) |
| True effective value measurement | True RMS |
| Resistance measuring range | 0,1...99,99kΩ |
| Resistance measuring accuracy | ±(1% + 5 digits) |
| Frequency measuring range | 5,0...20,00kHz |
| Frequency measuring accuracy | ±(0,4% + 1 digits) |
| Active power measurement | 1W...2000kW |
| Reactive power measurement | 1...2000kVAR |
| Apparent power measurement | 1...2000kVA |
| Continuity test | acoustic signal for R<40Ω |
| Dimensions | 111 x 296 x 41mm |
| Weight | 640g |
| Power supply | 4 batteries 1,5V LR6 (AA) |
| Standard equipment | batteries |
| Standard equipment | test probes |
| Standard equipment | 2 crocodile clips |
| Standard equipment | software |
| Standard equipment | case |
| Standard equipment | test leads |
| Measurement | continuity |
| Measurement | frequency |
| Measurement | harmonics |
| Measurement | reactive power |
| Measurement | active power |
| Measurement | apparent power |
| Measurement | AC voltage |
| Measurement | DC voltage |
| Measurement | AC current |
| Measurement | DC current |
| Measurement | inrush current |
| Measurement | resistance |
| Conform to the norm | EN 61243-3:2010 CAT III 1000V |
| Conform to the norm | EN61010 1000V CAT IV |
| Interface | Bluetooth |
| Manufacturer | CHAUVIN ARNOUX |
