GSMCentrum.CZ » Measuring instruments » Oscilloscopes

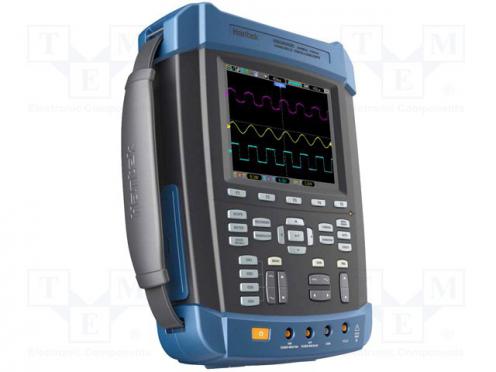

Handheld oscilloscope 70MHz colour,LCD TFT 5,6" (640x480)
| Items in stock i | 3 pieces |
|---|---|
| Barcode: | |
| Number: | TMEDSO8072E |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | HANTEK |
Popis produktu
Handheld oscilloscope 70MHz colour,LCD TFT 5,6" (640x480) - Popis produktu
| Manufacturer | HANTEK |
|---|---|
| Type of oscilloscope | handheld oscilloscope |
| Band | 70MHz |
| Kind of display used | colour |
| Kind of display used | LCD TFT 5,6" (640x480) |
| Number of channels | 2 |
| Measurement | AC current |
| Measurement | AC voltage |
| Measurement | capacitance |
| Measurement | DC current |
| Measurement | DC voltage |
| Measurement | resistance |
| Sampling | 1Gsps |
| Memory record length | 2Mpts |
| Time base | 4n...2ks/div |
| Vertical resolution | 8bit |
| Max. input voltage | 30V |
| Trigger | falling-edge |
| Trigger | impulse width |
| Trigger | rising-edge |
| Trigger | video signal |
| Test | diodes |
| Continuity test | acoustic indication |
| Trigger modes | automatic |
| Trigger modes | normal |
| Trigger modes | single |
| Trigger source | CH1 |
| Trigger source | CH2 |
| Trigger source | supply voltage source |
| Rise time | ≤5ns |
| Input sensitivity | 2mV/div |
| Interface | USB |
| Input impedance | 1MΩ/20pF |
| Power supply | rechargeable battery Li-Ion x1 |
| Plug variant | EU |
| Dimensions | 260x220x75mm |
| Weight | 2.5kg |
| Measuring instrument features | automatic measurement of many parameters |
| Measuring instrument features | FFT analysis |
| Measuring instrument features | mathematical functions: addition, subtraction, division, multiplication and FFT |
| Measuring instrument features | Pass/Fail function |
| Measuring instrument features | X-Y operation mode |
| Standard equipment | 2 oscilloscope probes |
| Standard equipment | mains cable |
| Standard equipment | test leads |
| Standard equipment | USB cable |
| Manufacturer series | DSO8000E |
| Measurement memory | 1000 |
| Supply voltage | 100...240V AC |
