| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMERTX3-1AT-C012 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | TE CONNECTIVITY |

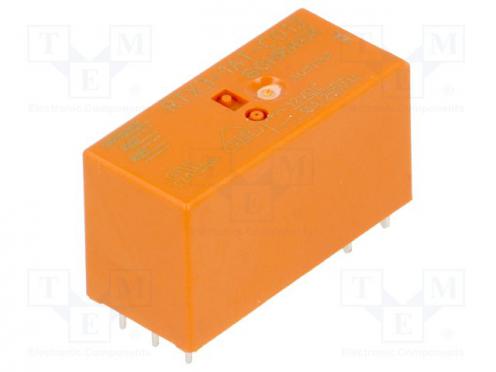

Relay electromagnetic SPST-NO Ucoil 12VDC 16A/250VAC PCB - Popis produktu
| Manufacturer | TE Connectivity |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 12V DC |
| AC contacts rating @R | 16A / 250V AC |
| Switched voltage | max. 250V AC |
| Relay variant | bistable |
| Relay variant | inrush |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 150Ω |
| Coil voltage min. | 9V DC |
| Body dimensions | 29.1x16x12.7mm |
| Coil power consumption | 950mW |
| Mechanical durability | 100000 cycles |
| Operating temperature | -40...70°C |
| Relay series | RTX |
| Contact material | W + AgSnO2 |
| Terminal pitch | 2.52mm |
| Design | two coils |
| Max surge current | 320A |
