GSMCentrum.CZ » Electronic components » Wires and cables » Multicore cables
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEPVC-FLACH-7G2.5 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | HELUKABEL |

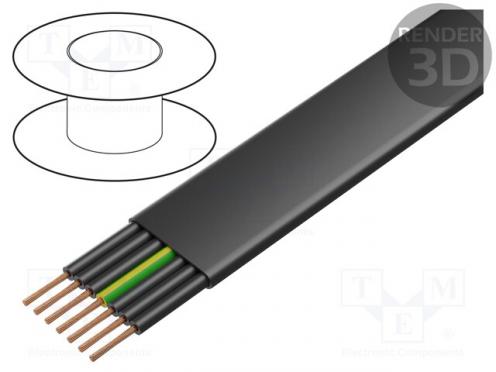

HELUKABEL 27009 Wire PVC-Flach 7G2,5mm2 unshielded 450/750V Cu stranded - Popis produktu
| Manufacturer | HELUKABEL |
|---|---|
| Type of wire | control cable |
| Kind of wire | PVC-Flach |
| Shield structure | unshielded |
| Rated voltage | 450/750V |
| Wire insulation material | PVC |
| Kind of core | Cu |
| Core structure | stranded |
| Number of cores | 7 |
| Core section | 2.5mm2 |
| Core marking | black, numbered + ground wire |
| Insulation colour | black |
| Operating temperature | -5...70°C |
| Resistance to | flame |
| Resistance to | most of chemical compounds |
| Wire cross-section shape | flat |
| Conforms | H07VVH6-F |
| Flexibility class | 5 |
| Earth core | yellow-green |
| Cable outside dimensions | 5.5x30.3mm |
| Cable application | assembly line tools |
| Cable application | mechanical engineering |
| Cable application | production line tools |
| Cable features | flame retardant |
| Cable features | no flame propagation |
