| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEJZ600-HMHC-7G2.5 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | HELUKABEL |

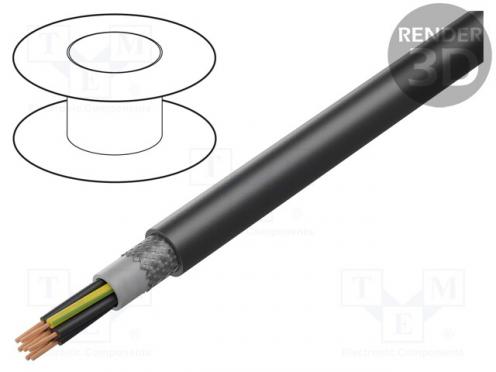

HELUKABEL 12881 Wire JZ-600 HMH-C 7G2,5mm2 shielded,tinned copper braid LSZH - Popis produktu
| Manufacturer | HELUKABEL |
|---|---|
| Type of wire | control cable |
| Core structure | stranded |
| Kind of core | Cu |
| Number of cores | 7 |
| Core section | 2.5mm2 |
| Kind of wire | JZ-600 HMH-C |
| Core marking | black, numbered + ground wire |
| Shield structure | shielded |
| Shield structure | tinned copper braid |
| Wire insulation material | LSZH |
| Insulation colour | black |
| Rated voltage | 0.6/1kV |
| Operating temperature | -15...70°C |
| Resistance to | flame |
| Resistance to | most of oils |
| Cable features | flame retardant |
| Cable features | no flame propagation |
| Cable application | air-conditioning technology |
| Cable application | automatics |
| Cable application | control for machines |
| Cable application | industrial applications |
| Cable external diameter | 16.3mm |
| CPR standard | Dca |
| Earth core | yellow-green |
| Kind of material | halogen free |
