GSMCentrum.CZ » Electronic components » Wires and cables » Single-core conductors
| Items in stock i | 245 pieces |
|---|---|
| Barcode: | |
| Number: | TMEUL-CSA-HAR-18GNYE |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | LAPP KABEL |

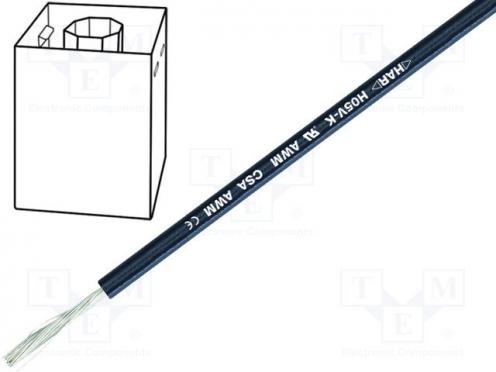

Wire H05V-K,Multi-Standard SC 1 stranded Cu 1mm2 18AWG PVC - Popis produktu
| Manufacturer | LAPP |
|---|---|
| Type of wire | assembly |
| Kind of wire | H05V-K |
| Kind of wire | Multi-Standard SC 1 |
| Core structure | stranded |
| Kind of core | Cu |
| Kind of core | tinned |
| Number of cores | 1 |
| Core section | 1mm2 |
| Core diameter | 18AWG |
| Insulation colour | green-yellow |
| Outer insulation material | PVC |
| Rated voltage | 300V |
| Operating temperature | -40...105°C |
| Resistance to | most of oils |
| Cable features | flame retardant |
| Flexibility class | 5 |
| Cable external diameter | 2.8mm |
| Conforms | CSA |
| Conforms | H05V-K |
| Conforms | UL 1007 |
| Conforms | UL 1569 |
| CPR standard | no classification |
| Package contents | 100m |
