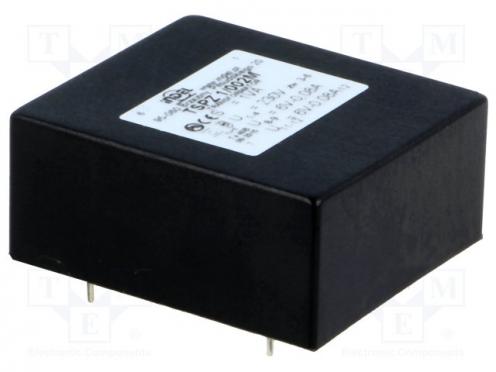

Transformer encapsulated 1VA 230VAC 6V 6V 0.08A 0.08A PCB - Popis produktu
| Manufacturer | INDEL |
|---|---|
| Type of transformer | encapsulated |
| Power | 1VA |
| Primary voltage | 230V AC |
| Secondary voltage 1 | 6V |
| Secondary voltage 2 | 6V |
| Secondary winding current 1 | 0.08A |
| Secondary winding current 2 | 0.08A |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN-EN 61558 |
| Thermal class | Ta40B |
| Insulation class | II |
| Weight | 80g |
| A dimension | 29mm |
| B dimension | 33.5mm |
| C dimension | 14.9mm |
| P dimension | 5mm |
| Electrical insulation strength | 4kV/60s |
| m dimension | 20mm |
