| Items in stock i | 3 pieces |
|---|---|
| Barcode: | |
| Number: | TMETSZS160/24V |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | INDEL |

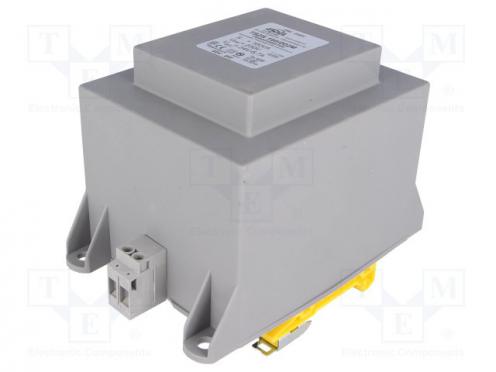

Transformer encapsulated 160VA 230VAC 24V 6.67A DIN 3kg IP00 - Popis produktu
| Manufacturer | INDEL |
|---|---|
| Type of transformer | encapsulated |
| Power | 160VA |
| Primary voltage | 230V AC |
| Secondary voltage 1 | 24V |
| Secondary winding current 1 | 6.67A |
| Leads | terminal block |
| Mounting | DIN |
| Weight | 3kg |
| IP rating | IP00 |
| Thermal class | Ta40B |
| Conform to the norm | PN-EN 61558 |
| Insulation class | II |
| A dimension | 100mm |
| A1 dimension | 69mm |
| B dimension | 86.5mm |
| B1 dimension | 70mm |
| C dimension | 86mm |
| C1 dimension | 70mm |
| D dimension | 115mm |
| D1 dimension | 70mm |
| E dimension | 129.5mm |
| Electrical insulation strength | 4kV/60s |
| Flammability rating | UL94V-0 |
