GSMCentrum.CZ » Automation technology » Regulation and control » Time relay

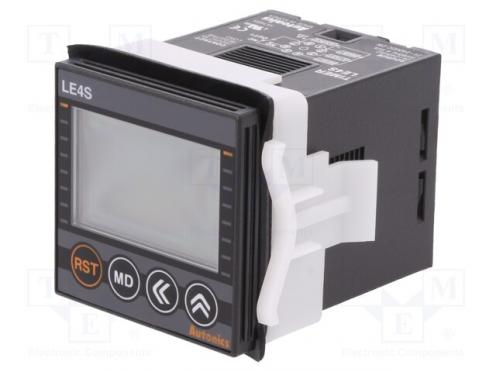

Timer Range 0,001s÷9999h SPDT 24÷240VAC 24÷240VDC 45x45mm
| Items in stock i | 29 pieces |
|---|---|
| Barcode: | |
| Number: | TMELE4S |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | AUTONICS |
Popis produktu
Timer Range 0,001s÷9999h SPDT 24÷240VAC 24÷240VDC 45x45mm - Popis produktu
| Manufacturer | AUTONICS |
|---|---|
| Type of module | timer |
| Counting range | 0,001s...9999h |
| Kind of output | SPDT |
| Supply voltage | 24...240V AC |
| Supply voltage | 24...240V DC |
| number of operation modes | 10 |
| Mounting | on panel |
| Mounting | socket |
| Counter operation modes | delayed switching off |
| Counter operation modes | delayed switching on |
| Counter operation modes | ON and OFF delay |
| Counter operation modes | pulse after a specified time |
| Counter operation modes | symmetrical cyclical operation pause first with two independent times T1 and T2 |
| Counter operation modes | symmetrical cyclical operation swithing on first with two independent times T1 and T2 |
| Counter operation modes | with the control contact S |
| Operating temperature | -10...55°C |
| Output 1 electrical parameters | 30V DC / 5A |
| Output 1 electrical parameters | 250V AC / 5A |
| Kind of display used | LCD |
| Electrical connection | round socket |
| Mounting hole diameter | 45x45mm |
| Number of pins | 8 |
| The additional control inputs | INHIBIT |
| The additional control inputs | RESET |
| The additional control inputs | START |
| IP rating | IP20 |
| Relay series | LE4S |
| Related items | A-08 |
| Related items | A-08/DIN |
