GSMCentrum.CZ » Automation technology » Regulation and control » Time relay

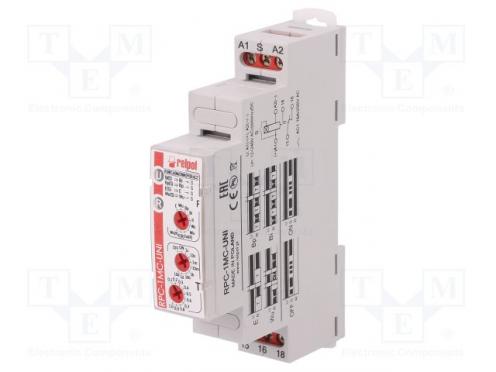

Timer 1s÷10days SPDT 250VAC/16A,24VDC/16A Usup 12÷240VAC
| Items in stock i | 7 pieces |
|---|---|
| Barcode: | |
| Number: | TMERPC-1MC-UNI |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | RELPOL |
Popis produktu
Timer 1s÷10days SPDT 250VAC/16A,24VDC/16A Usup 12÷240VAC - Popis produktu
| Manufacturer | RELPOL |
|---|---|
| Type of module | timer |
| Counting range | 1s...10days |
| Kind of output | SPDT |
| Output 1 electrical parameters | 24V DC / 16A |
| Output 1 electrical parameters | 250V AC / 16A |
| Supply voltage | 12...240V AC |
| number of operation modes | 14 |
| Counter operation modes | activation for the set time triggered by the closing of the S contact |
| Counter operation modes | activation for the set time triggered by the opening of the S contact |
| Counter operation modes | delayed switching on |
| Counter operation modes | delayed switching on and off controlled by contact S with RESET function |
| Counter operation modes | delayed switching on with stopping the timing with the contact S |
| Counter operation modes | delayed switching on with the RESET function |
| Counter operation modes | delayed switch-off controlled by contact S |
| Counter operation modes | ON for the set interval |
| Counter operation modes | switching on for the set time with RESET function |
| Counter operation modes | switching on for the set time with stopping the timing by closing contact S |
| Counter operation modes | symmetrical cyclical operation pause first |
| Counter operation modes | symmetrical cyclical operation pulse first |
| Counter operation modes | symmetrical cyclical operation starting from switching on with stopping the T time measurement for the duration of contact S |
| Counter operation modes | symmetrical cyclical work starting from the interval with stopping the timing T for the duration of contact S |
| Electrical connection | screw terminals |
| Mounting | DIN |
| Operating temperature | -20...50°C |
| Body dimensions | 90x17.5x64.6mm |
| Number of pins | 6 |
| IP rating | IP20 |
| The additional control inputs | RESET |
| The additional control inputs | STOP |
| Relay series | RPC |
| OEM number | 863216 |
| Timers features | operation status indication - LED diodes |
