GSMCentrum.CZ » Electronic components » Mechanical switching elements » Vandal-resistant switch
| Items in stock i | 41 pieces |
|---|---|
| Barcode: | |
| Number: | TMEMTA22F-10EYB24VS |
| Package: | |
| Min. quantity: | 1 |
| barva: | Modrá |
| Manufacturer: | ONPOW |

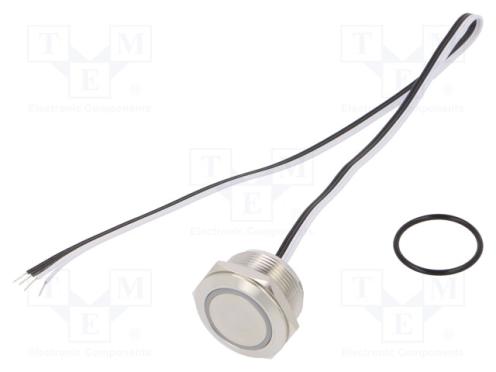

Switch vandal resistant Pos 2 SPST-NO 50mA/24VDC IP65 blue - Popis produktu
| Manufacturer | ONPOW |
|---|---|
| Type of switch | vandal resistant |
| Number of positions | 2 |
| Contacts configuration | SPST-NO |
| DC contacts rating @R | 50mA / 24V DC |
| IP rating | IP65 |
| Switching method | OFF-(ON) |
| Illumination | LED |
| Illumination | ring |
| Backlight colour | blue |
| Illumination voltage | 24V |
| Leads | 300mm leads |
| Operating temperature | -25...55°C |
| Electrical life | 500000 cycles |
| Max. contact resistance: | 50mΩ |
| Operating Force | 5N |
| Mechanical durability | 500000 cycles |
| Button shape | flat |
| Mounting hole diameter | Ø22mm |
| Body colour | silver |
| Body material | stainless steel |
| Ring shape | rounded |
| Test voltage | 2kV |
| Actuator colour | silver |
| Min. insulation resistance | 1000MΩ |
| Manufacturer series | MTA22 |
| Stable positions number | 1 |
