GSMCentrum.CZ » Electronic components » Mechanical switching elements » Vandal-resistant switch
| Items in stock i | 1 pieces |
|---|---|
| Barcode: | |
| Number: | TMEPVA3F230SS3R1 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | E-SWITCH |

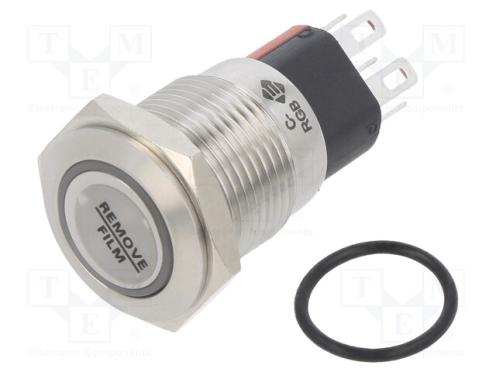

Switch vandal resistant Pos 2 SPDT 2A/36VDC IP65 ON-ON Ø16mm - Popis produktu
| Manufacturer | E-SWITCH |
|---|---|
| Type of switch | vandal resistant |
| Number of positions | 2 |
| Contacts configuration | SPDT |
| DC contacts rating @R | 2A / 36V DC |
| IP rating | IP65 |
| Switching method | ON-ON |
| Illumination | LED |
| Backlight colour | red/green/blue |
| Leads | for soldering |
| Operating temperature | -25...55°C |
| Electrical life | 50000 cycles |
| Max. contact resistance: | 50mΩ |
| Operating Force | 1.7N |
| Mechanical durability | 500000 cycles |
| Button shape | flat |
| Mounting hole diameter | Ø16mm |
| Body material | stainless steel |
| Ring shape | rounded |
| Contact material | silver |
| Button material | stainless steel |
| Mounting | on panel |
| Stable positions number | 2 |
