| Items in stock i | 118 pieces |
|---|---|
| Barcode: | |
| Number: | TMER13-96G-01 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | SCI |

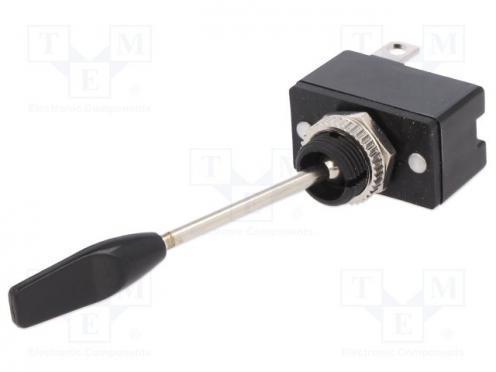

Switch toggle Positions 2 SPST OFF-(ON) 10A/12VDC 50mΩ 1.5kV - Popis produktu
| Type of switch | toggle |
|---|---|
| Number of positions | 2 |
| Stable positions number | 1-position |
| Contacts configuration | SPST |
| Switching method | OFF-(ON) |
| DC contacts rating @R | 10A / 12VDC |
| Leads | 6,2x1mm connectors |
| Kind of toggle | flat |
| Mounting hole diameter | Ø12.2mm |
| Knob height | 56.9mm |
| Max. contact resistance: | 50mΩ |
| Body dimensions | 28.4 x 16 x 16.4mm |
| Actuator material | metal |
| Manufacturer series | R13-96 |
| Panel thickness | max 4mm |
| Terminals plating | nickel |
| Test voltage | 1.5kV |
| Lever colour | black |
| Manufacturer | SCI |
