GSMCentrum.CZ » Electronic components » Mechanical switching elements » Sliding switches
| Items in stock i | 833 pieces |
|---|---|
| Barcode: | |
| Number: | TMETS6SQH |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | CANAL ELECTRONIC |

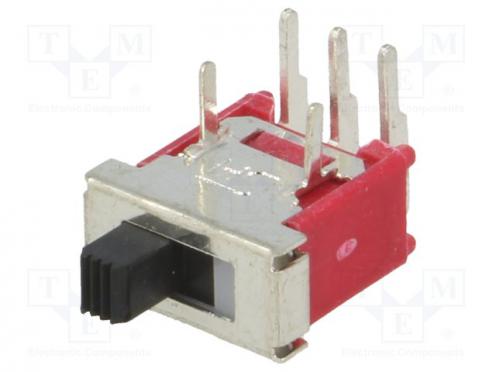

Switch slide Pos 2 SPDT 1.5A/250VAC ON-ON Mounting THT - Popis produktu
| Manufacturer | CANAL ELECTRONIC |
|---|---|
| Type of switch | slide |
| Number of positions | 2 |
| Contacts configuration | SPDT |
| AC contacts rating @R | 1.5A / 250V AC |
| Switching method | ON-ON |
| Mounting | THT |
| Operating temperature | -30...85°C |
| Leads | angled |
| Leads | for PCB |
| Body dimensions | 8.16x5.1x8mm |
| Min. insulation resistance | 100MΩ |
| Manufacturer series | TS40 |
| Max. contact resistance: | 50mΩ |
| Terminal pitch | 2.54mm |
| Electrical life | 6000cycles |
| Contact material | copper alloy |
| Contact plating | silver plated |
| Body material | stainless steel |
| Flammability rating | UL94V-0 |
| Terminals plating | silver plated |
| Stable positions number | 2 |
