GSMCentrum.CZ » Electronic components » Mechanical switching elements » Sliding switches
| Items in stock i | 10 pieces |
|---|---|
| Barcode: | |
| Number: | TMEIC2105S1M6QE2 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | IC SWITCHES |

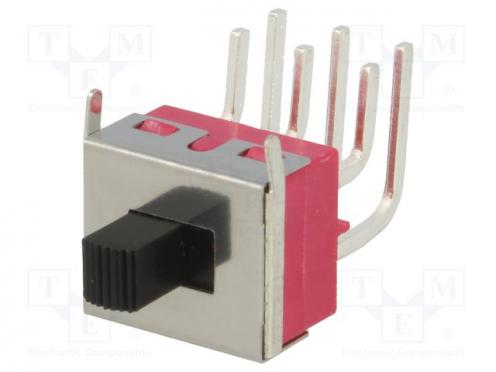

Switch slide Pos 2 DPDT 2A/250VAC ON-ON Mounting THT UL94V-0 - Popis produktu
| Manufacturer | IC SWITCHES |
|---|---|
| Type of switch | slide |
| Number of positions | 2 |
| Contacts configuration | DPDT |
| AC contacts rating @R | 2A / 250V AC |
| Switching method | ON-ON |
| Mounting | THT |
| Operating temperature | -30...85°C |
| Leads | angled |
| Leads | for PCB |
| Body dimensions | 12.7x11.43x7.62mm |
| Min. insulation resistance | 1000MΩ |
| Max. contact resistance: | 10mΩ |
| Terminal pitch | 4.7mm |
| Contact material | copper alloy |
| Contact plating | silver plated |
| Mechanical durability | 30000cycles |
| Body material | stainless steel |
| Flammability rating | UL94V-0 |
| Stable positions number | 2 |
