GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Electromagnetic relay for large applications
| Items in stock i | 394 pieces |
|---|---|
| Barcode: | |
| Number: | TMEV23132-E2001-A200 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | TE CONNECTIVITY |

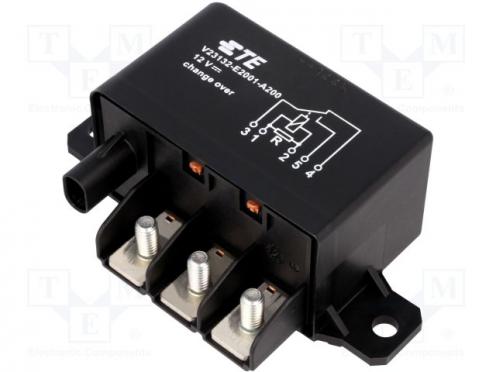

Relay electromagnetic SPDT Ucoil 12VDC 130A Series HCR150 - Popis produktu
| Manufacturer | TE Connectivity |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 12V DC |
| Contact current max. | 130A |
| Relay series | HCR150 |
| Relay variant | automotive |
| Relay variant | power |
| Operating temperature | -40...125°C |
| Mounting | on panel |
| Coil resistance | 37Ω |
| Body dimensions | 109.2x45x40mm |
| Switched voltage | max. 24V DC |
| Coil power consumption | 3.9W |
| Contact resistance | 50mΩ |
| DC contacts rating @R | 130A / 12V DC |
| Leads | screw terminals |
| Contact material | AgSnO2 |
| Weight | 220g |
| IP rating | IP54 |
| Related items | 1-1718643-1 |
