GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Miniature Electromagnetic Relay
| Items in stock i | 6891 pieces |
|---|---|
| Barcode: | |
| Number: | TMEAZ822-2C-5DSE |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | ZETTLER |

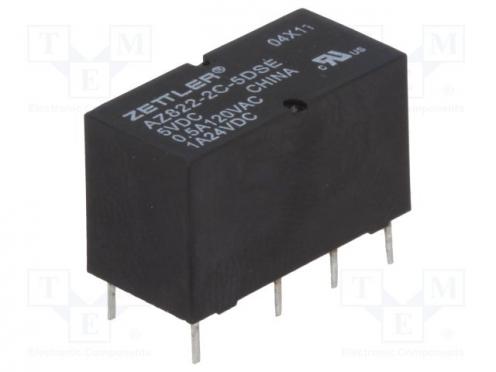

Relay electromagnetic DPDT Ucoil 5VDC 2A 0.5A/120VAC PCB - Popis produktu
| Manufacturer | ZETTLER |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 5V DC |
| Contact current max. | 2A |
| AC contacts rating @R | 0.5A / 120V AC |
| DC contacts rating @R | 1A / 24V DC |
| Switched voltage | max. 220V DC |
| Switched voltage | max. 250V AC |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 167Ω |
| Coil voltage min. | 3.5V DC |
| Coil voltage max. | 12.5V DC |
| Operate time | 5ms |
| Body dimensions | 20x9.8x12mm |
| Release time | 2ms |
| Coil power consumption | 74mW |
| IP rating | IP64 |
| Operating temperature | -55...90°C |
| Weight | 4.5g |
| Relay series | AZ822 |
| Contact resistance | 50mΩ |
| Terminal pitch | 5mm |
