GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Miniature Electromagnetic Relay

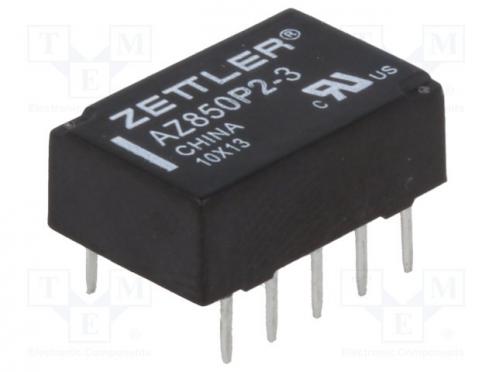

Relay electromagnetic DPDT Ucoil 3VDC 1A 0.5A/125VAC PCB
| Items in stock i | 1141 pieces |
|---|---|
| Barcode: | |
| Number: | TMEAZ850P2-3 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | ZETTLER |
Popis produktu
Relay electromagnetic DPDT Ucoil 3VDC 1A 0.5A/125VAC PCB - Popis produktu
| Manufacturer | ZETTLER |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 3V DC |
| Contact current max. | 1A |
| AC contacts rating @R | 0.5A / 125V AC |
| DC contacts rating @R | 1A / 30V DC |
| Switched voltage | max. 220V DC |
| Switched voltage | max. 250V AC |
| Relay variant | bistable |
| Relay variant | subminiature |
| Mounting | PCB |
| Coil resistance | 45Ω |
| Coil voltage min. | 2.1V DC |
| Coil voltage max. | 7.5V DC |
| Operate time | 2ms |
| Body dimensions | 14x9x5mm |
| Release time | 2ms |
| Coil power consumption | 169mW |
| Mechanical durability | 100000000 cycles |
| Operating temperature | -55...90°C |
| Relay series | AZ850 |
| Contact resistance | 70mΩ |
| Case | DIP10 |
| Switching capacity | 30W |
| Switching capacity | 50VA |
| Soldering temperature | 250°C |
| Terminal pitch | 2.54mm |
| Design | two coils |
| Test voltage | 1.5kV |
